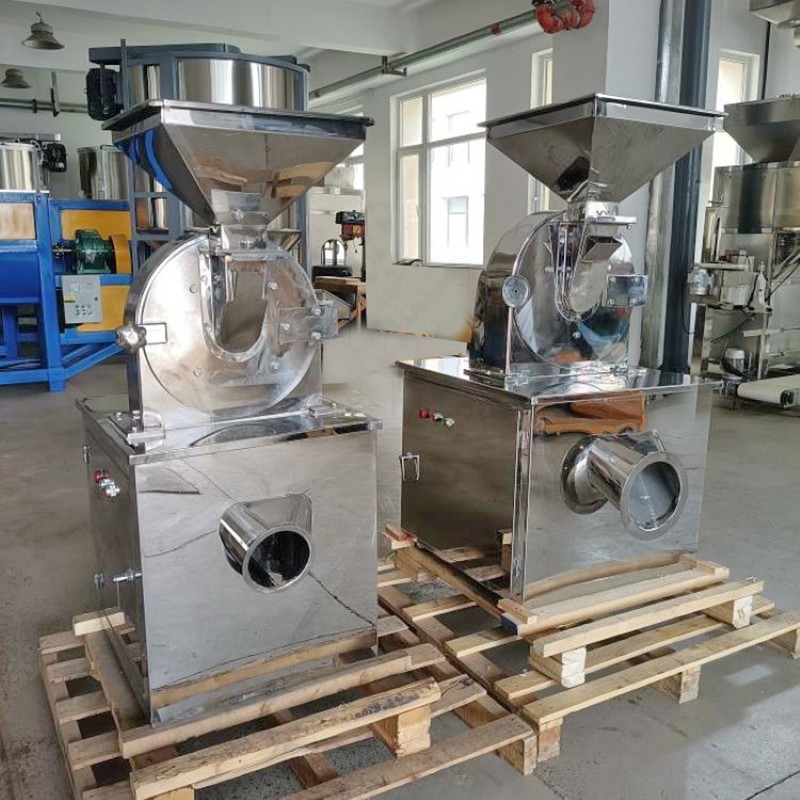

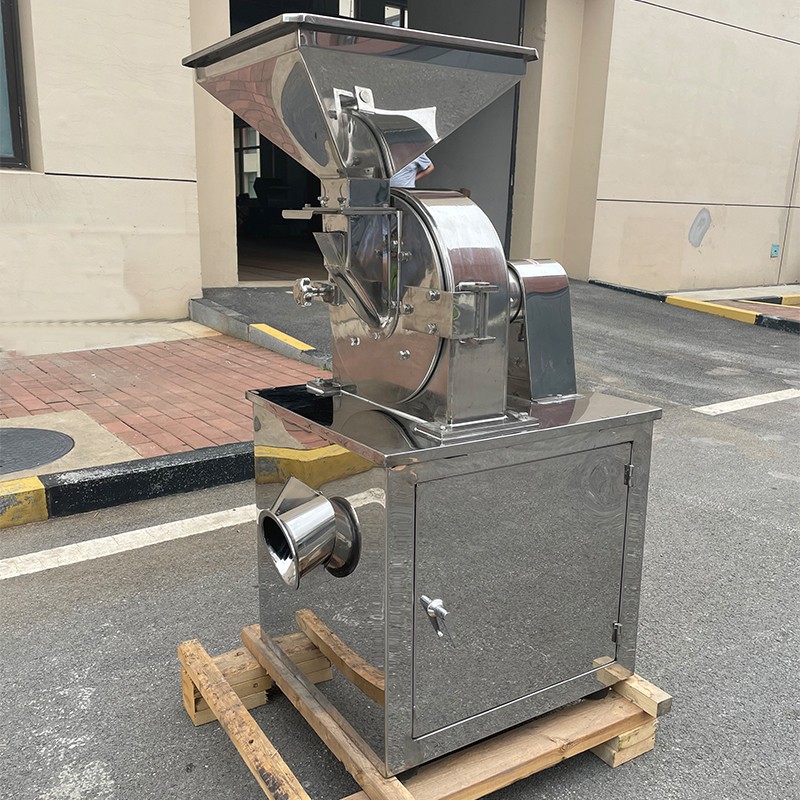

Today we are going to try the universal crusher
Universal crushers can be divided into toothed disc type, blade type, air-cooled type, hammer type, and turbine type according to the grinding method.
The toothed disc type is suitable for brittle (slightly hard) materials with high mesh requirements, the blade type is suitable for root and stem materials, the air-cooled and turbine type is suitable for materials with some oily brittleness, and the hammer type is suitable for block materials. The best materials to crush are chemical products, followed by food products, and the most difficult to crush are root and stem products. The grinding fineness is between 20-120 mesh, and the material is discharged through a sieve.
Advantages of Universal Crusher:
1. Widely applicable materials: It can handle various types of materials, whether it is dry Chinese medicinal materials, chemical raw materials, food raw materials, or ores, plastics, etc. As long as the hardness and humidity are within the appropriate range, it can be crushed and has strong versatility.

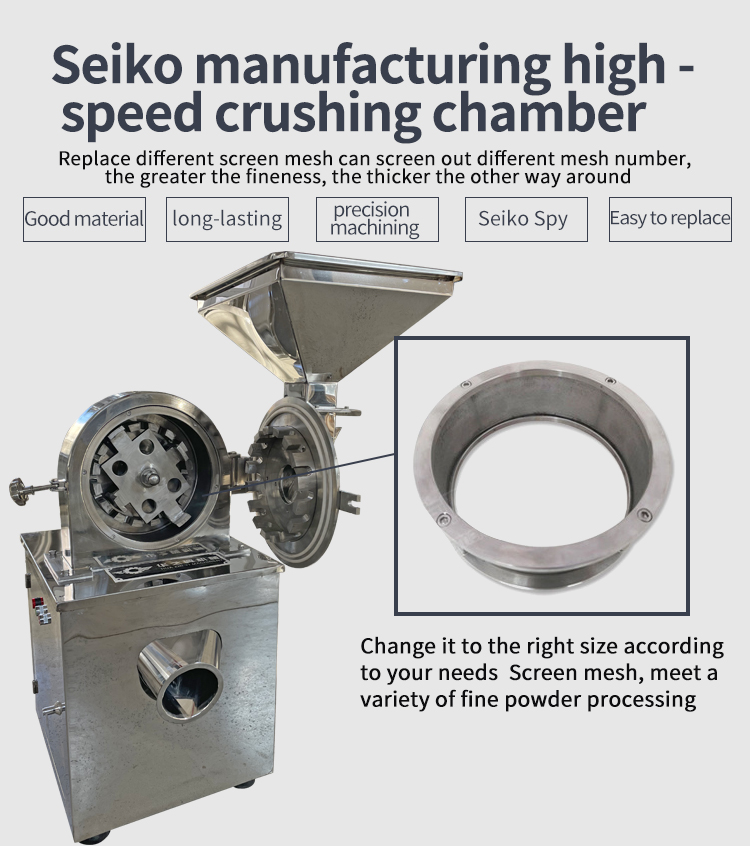

2. Adjustable crushing particle size: By changing the sieve mesh with different aperture sizes, the particle size of the crushed material can be flexibly controlled to meet the requirements of different scenarios for material fineness.

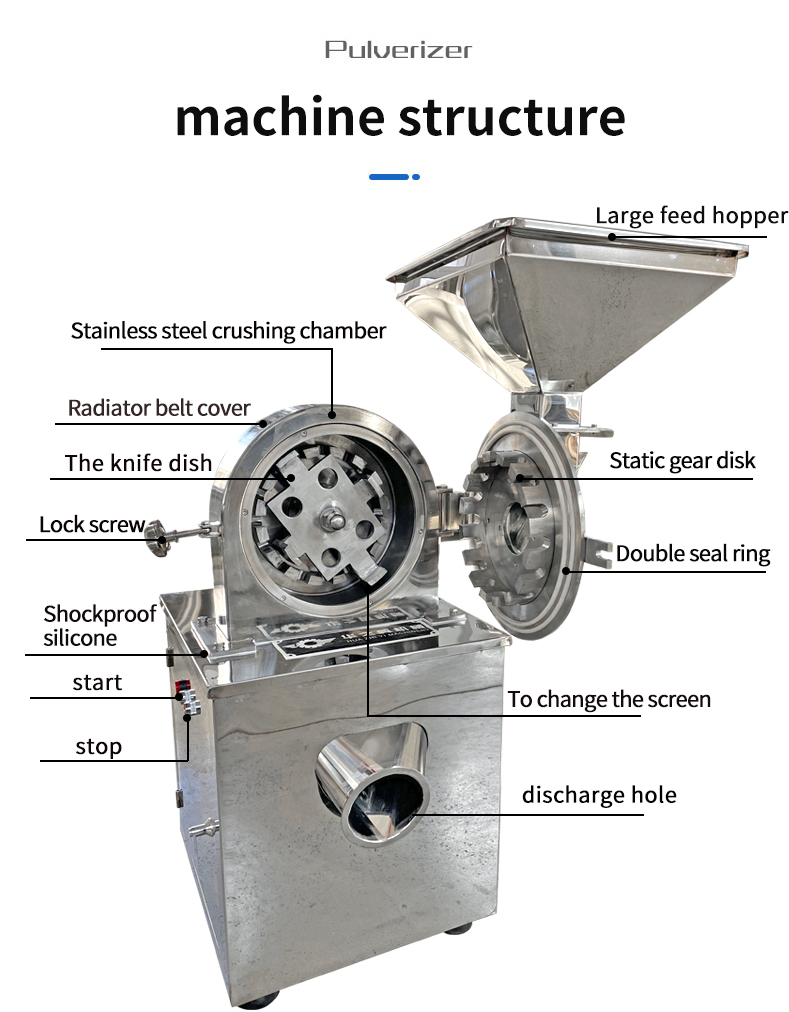

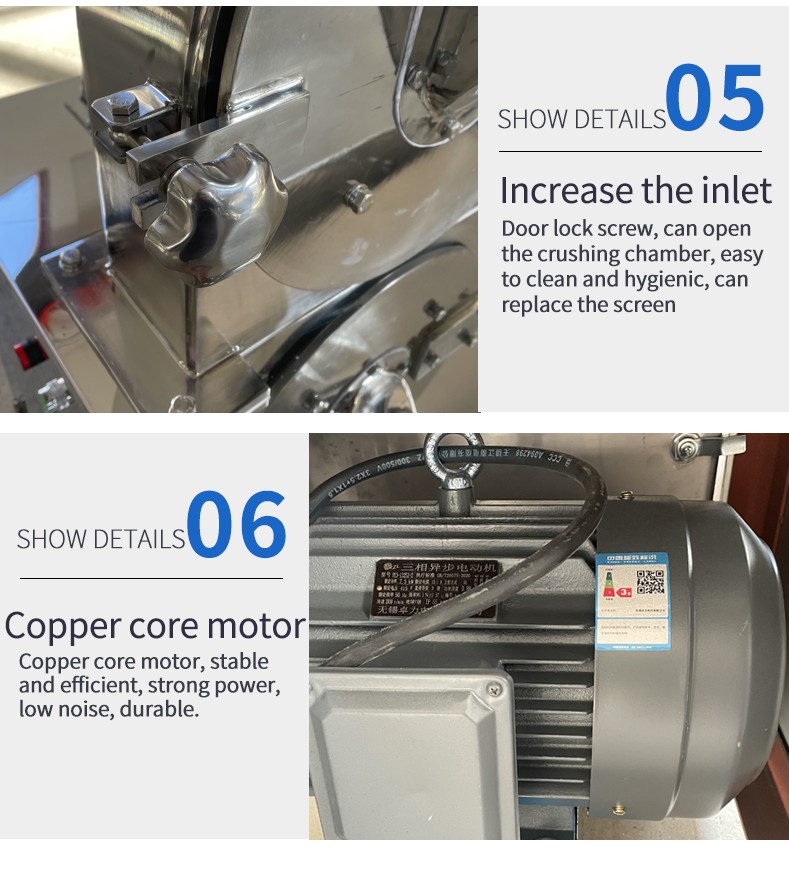

3. Simple and easy to maintain structure: The overall structure is not complicated, mainly composed of core components such as crushing chamber, rotor, and screen mesh, making daily cleaning, component replacement, and maintenance relatively convenient.
4. High work efficiency: relying on the impact force generated by high-speed rotating components to quickly crush materials, suitable for batch processing, and able to complete crushing operations in a relatively short time.
5. Convenient operation: The operation process is simple, does not require complex professional skills, can be used after simple training, and the operation process is relatively stable.
6. Compact size: The equipment occupies a small area, saves space, and is easy to install and use in laboratories, small workshops, and other places.

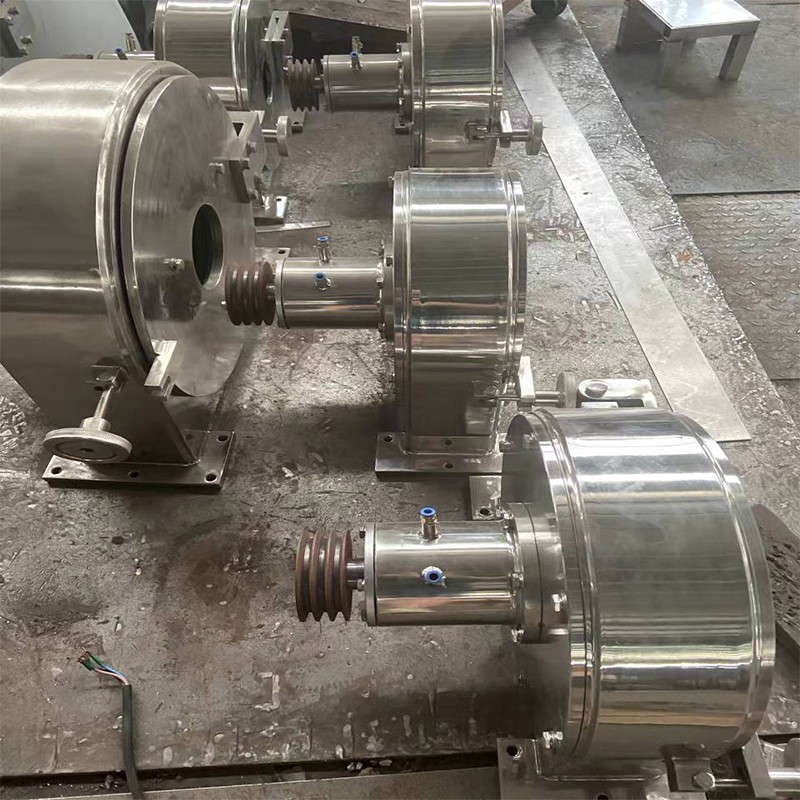

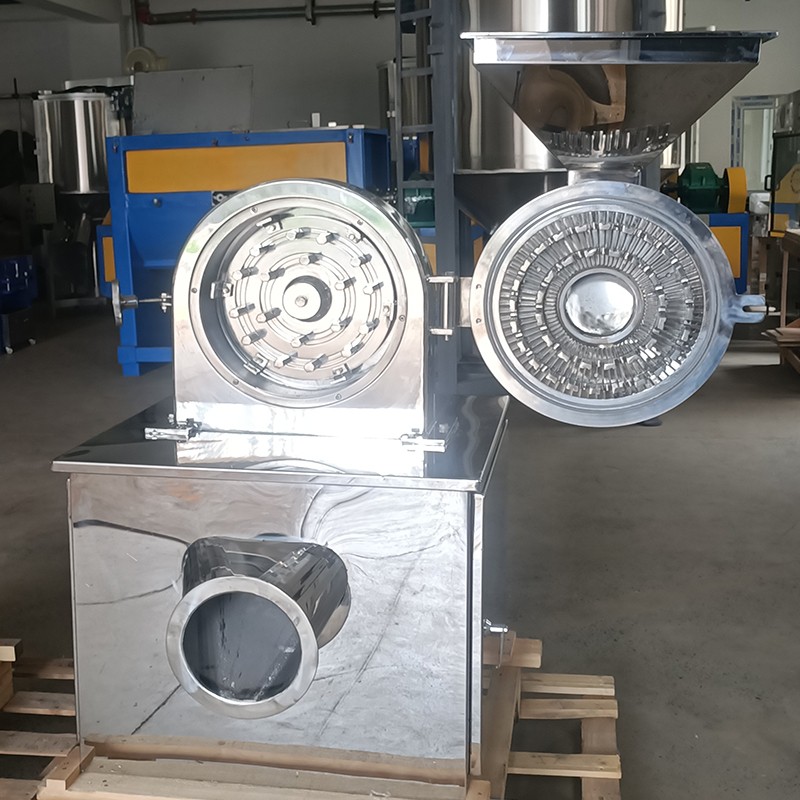

The working principle of a universal crusher is mainly to crush materials through the interaction between high-speed rotating components and fixed components. The materials to be crushed enter the crushing chamber through the feeding port. The crushing chamber is equipped with a high-speed rotating rotor (usually with blades, hammers, and other components), which generates strong centrifugal and impact forces when the rotor rotates. The material is subjected to strong impact, shear, collision, and friction between the high-speed rotating rotor and the fixed lining plate (or screen). The material is gradually crushed into small particles under the above-mentioned forces. When the particle size is smaller than the aperture of the sieve, it will pass through the sieve under centrifugal force or airflow and be discharged from the discharge port; Particles that do not meet the fineness requirements will continue to be repeatedly crushed in the crushing chamber until they meet the specifications.
