Today we will introduce the grinding method and applicable industries of universal crushers
The universal crusher consists of a machine base, a motor, a feeding hopper, a crushing chamber, a fixed toothed disc, a movable toothed disc, an annular sieve plate, a shaking loading capacity, and a discharge port。

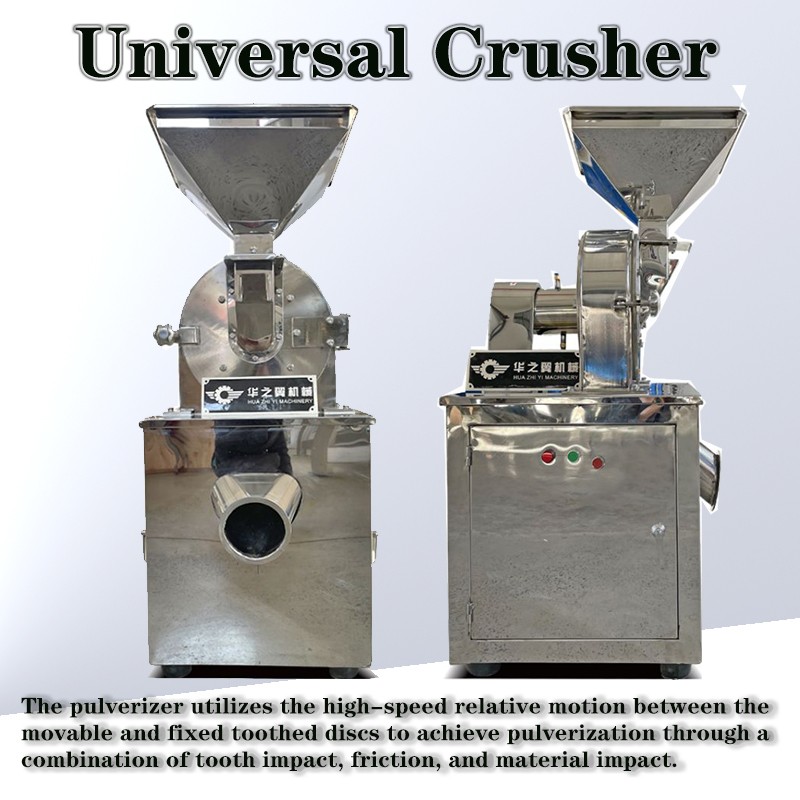

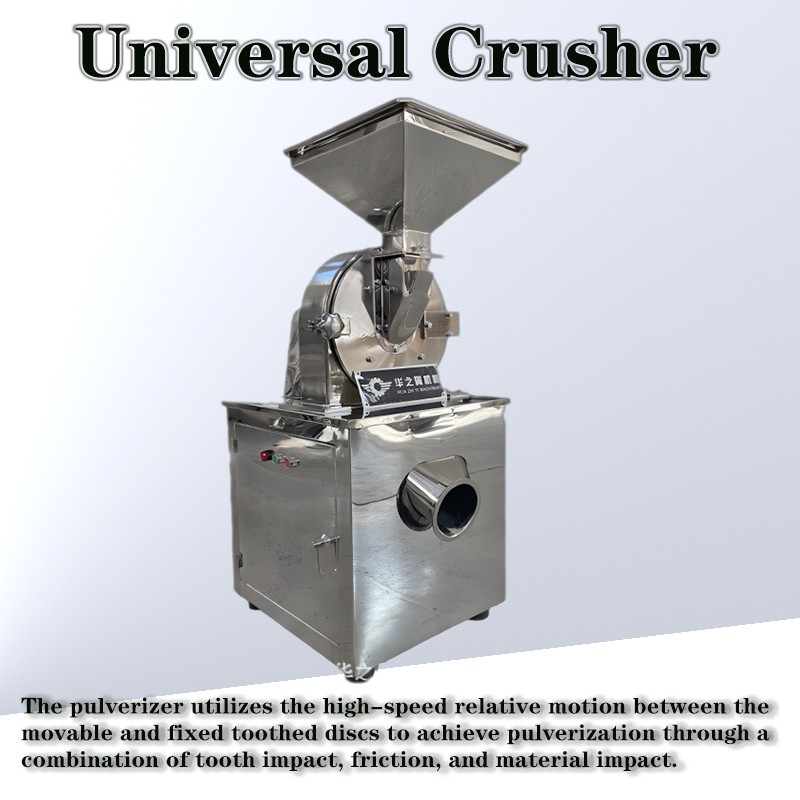

The universal crusher utilizes the high-speed relative motion between the movable toothed disc and the fixed toothed disc to achieve crushing of the crushed material through a combination of toothed disc impact, friction, and material impact with each other. The powder that has reached fineness is discharged through a sieve, while the coarse particles remain in the chamber for further crushing; Replace different mesh screens and adjust the discharge fineness (conventional 20-120 mesh).
Explanation of Grinding Methods for Stainless Steel Universal Crusher with Different Structures:
1. Gear disc pulverization
Principle: By relying on the high-speed relative operation of the dynamic and static gears, the material is crushed by the combined effects of impact, shear, and friction.
Applicable industries: Food flavoring, chemical, and feed industries.
Applicable materials: dry and brittle materials such as ginger, star anise, Sichuan pepper, grains, rhizomes, calcium carbonate, etc; Suitable for medium fineness grinding, with strong versatility.
2. Blade type (swinging blade type) crushing:
Principle: The high-speed rotating blade cuts and shears the material, with shearing as the main action.
Applicable industries: Food and agricultural products processing industry.
Applicable materials: Long fiber materials such as licorice, bark, straw, and leaves; Suitable for shredding and powdering fiber materials.
3. Hammer type (hammer type) crushing:
Principle: The high-speed rotating hammer violently impacts and hits the material, mainly through impact fragmentation.
Applicable industries: feed, grain, building materials
Applicable materials: corn, soybeans, hard materials such as roots and stems, shells, brittle materials such as ores; Suitable for crushing coarse and large brittle materials.
4. Turbocharged pulverization:
Principle: The turbine blades rotate at high speed, forming strong vortices, and the material undergoes multiple crushing processes including impact, shear, and self collision.
Applicable industries: food and chemical industry.
Applicable materials: dry and brittle materials, capable of processing finer powders, with uniform discharge; Suitable for raw materials with high fineness requirements, can be paired with dust removal.
Characteristics of crusher:
1. This machine is made of all stainless steel and meets GMP requirements.
2. The structure is simple, the crushing chamber is easy to assemble and disassemble, and easy to clean.
3. Smooth operation, low noise, and minimal vibration.
4. Easy to operate. Replacing the sieve can control the fineness of the powder.
