Today we will talk about the grinding method of the universal crusher

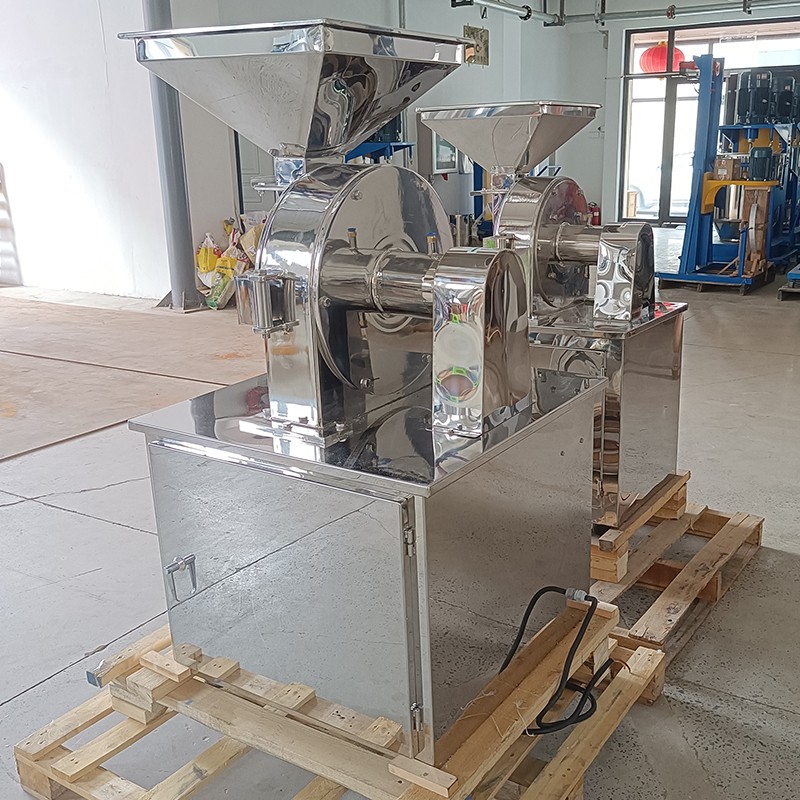

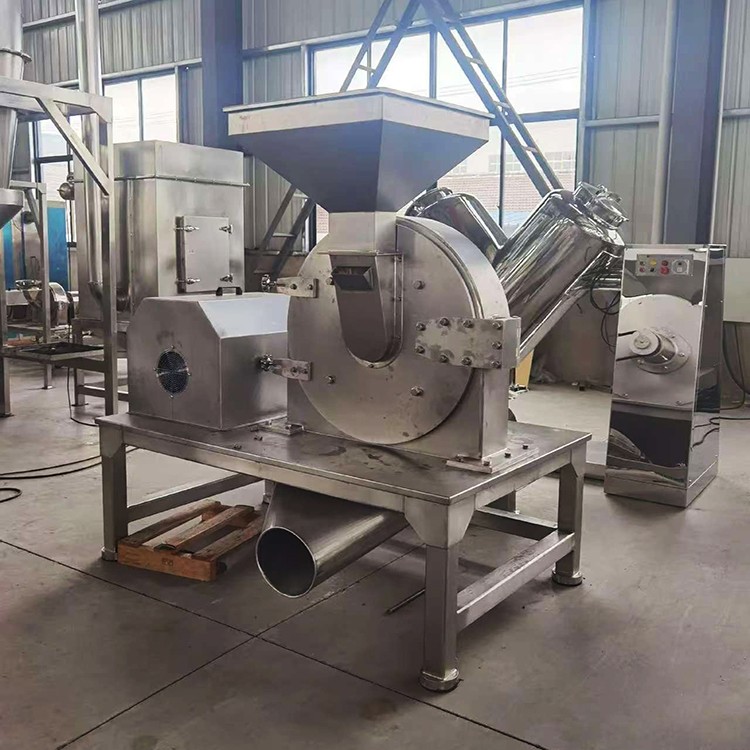

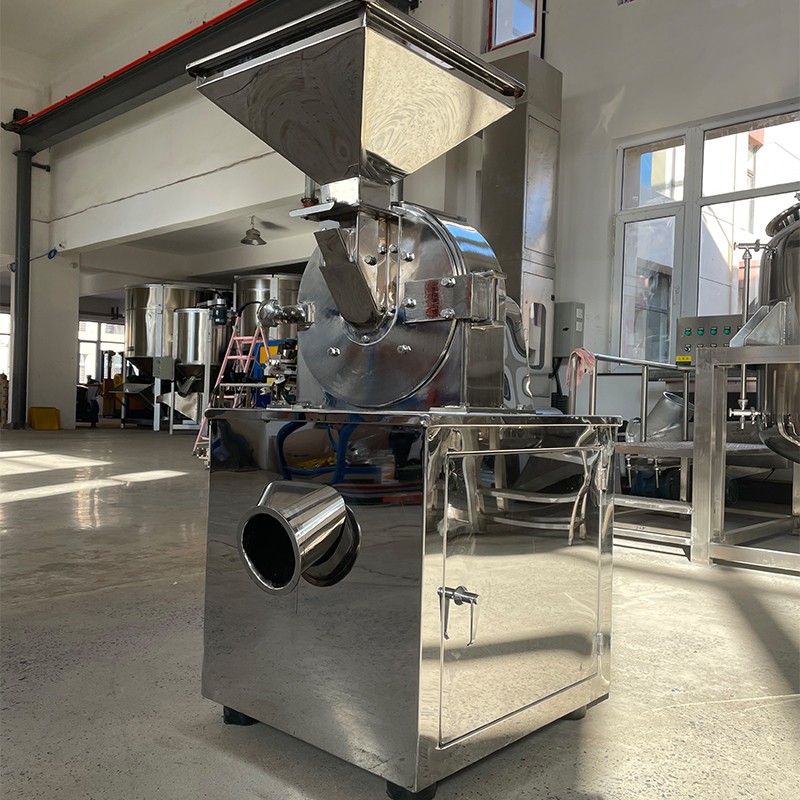

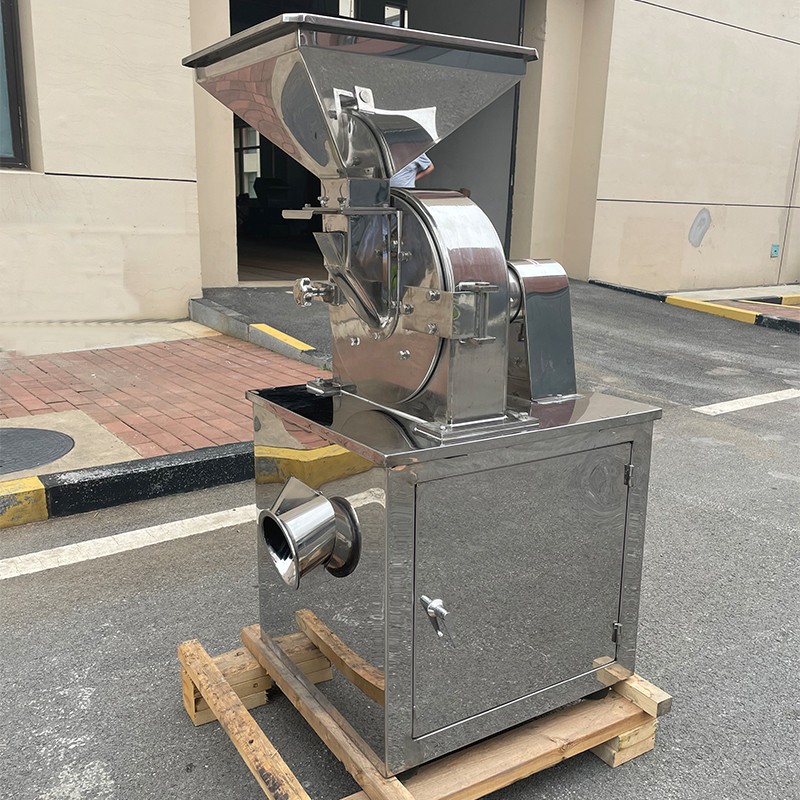

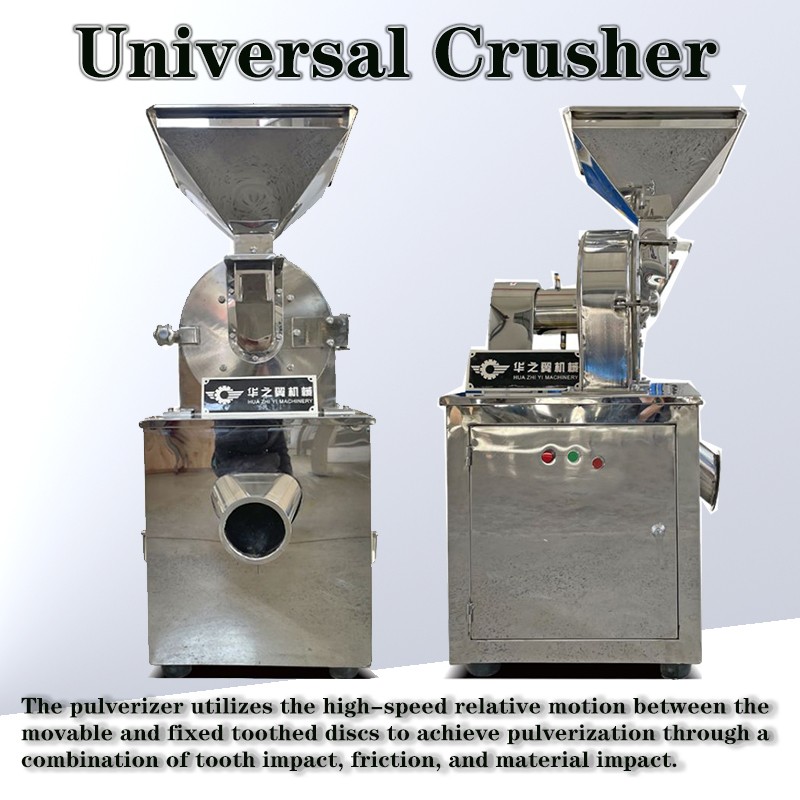

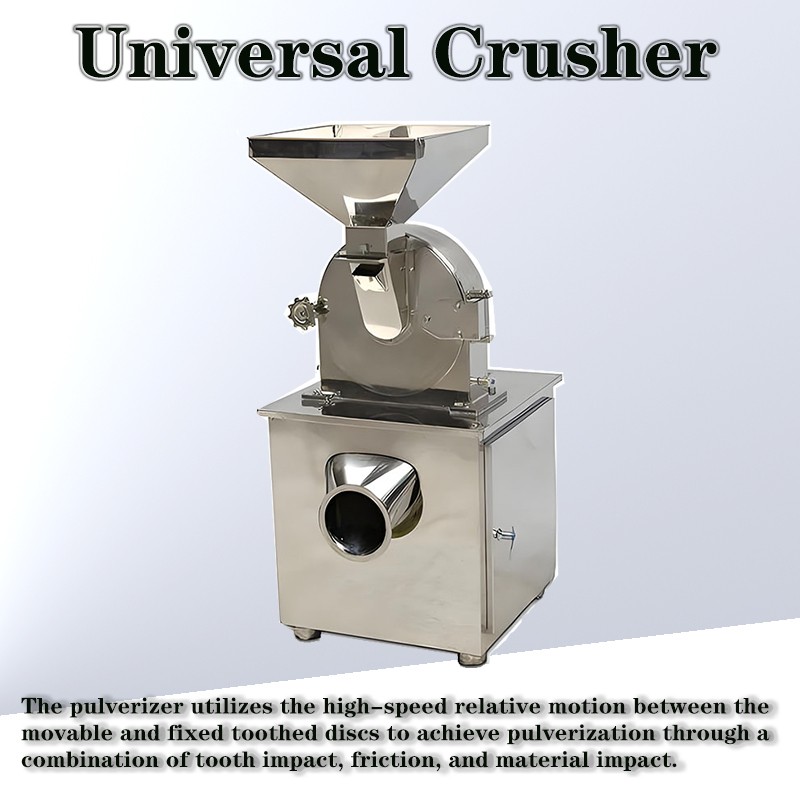

The universal crusher consists of a machine base, motor, feeding hopper, crushing chamber, fixed toothed disc, movable toothed disc, screen mesh, discharge port, etc. Mainly used in the fields of industry, food, chemical industry, feed processing, etc., ultra-fine crushing equipment achieves efficient crushing and grinding of materials with different physical properties by combining high-speed rotating crushing components with fixed components, combined with various forces such as impact, shear, grinding, friction, and particle collision. It can flexibly adapt to different fineness requirements such as coarse crushing, medium crushing, and fine crushing by changing the crushing structure and adjusting the mesh aperture. It has the characteristics of strong universality, high crushing efficiency, convenient operation, and simple maintenance.
The grinding methods of universal crushers include hammer type, claw type, turbine type, and knife type.

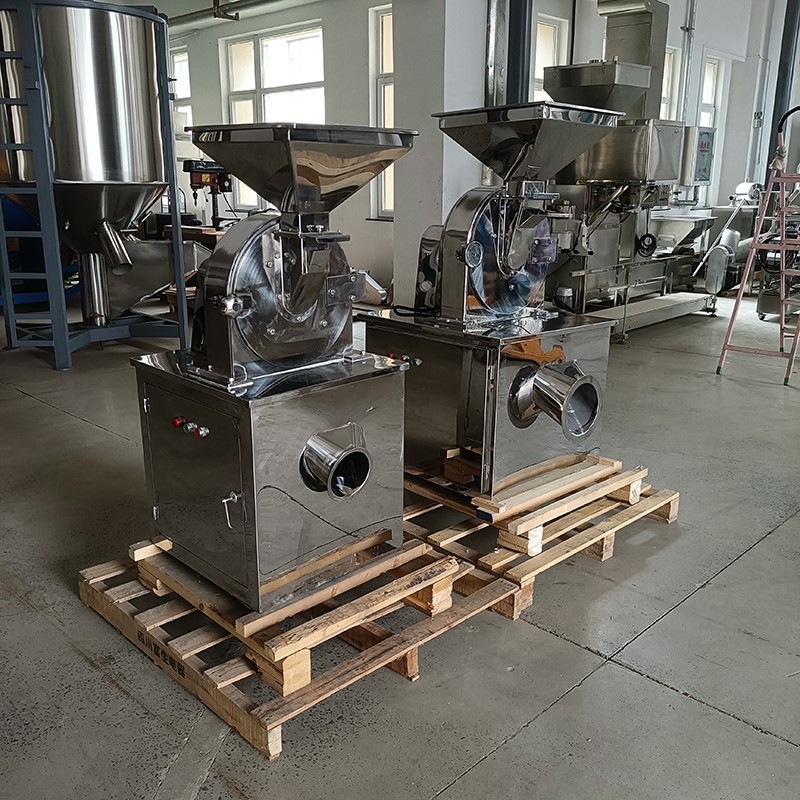

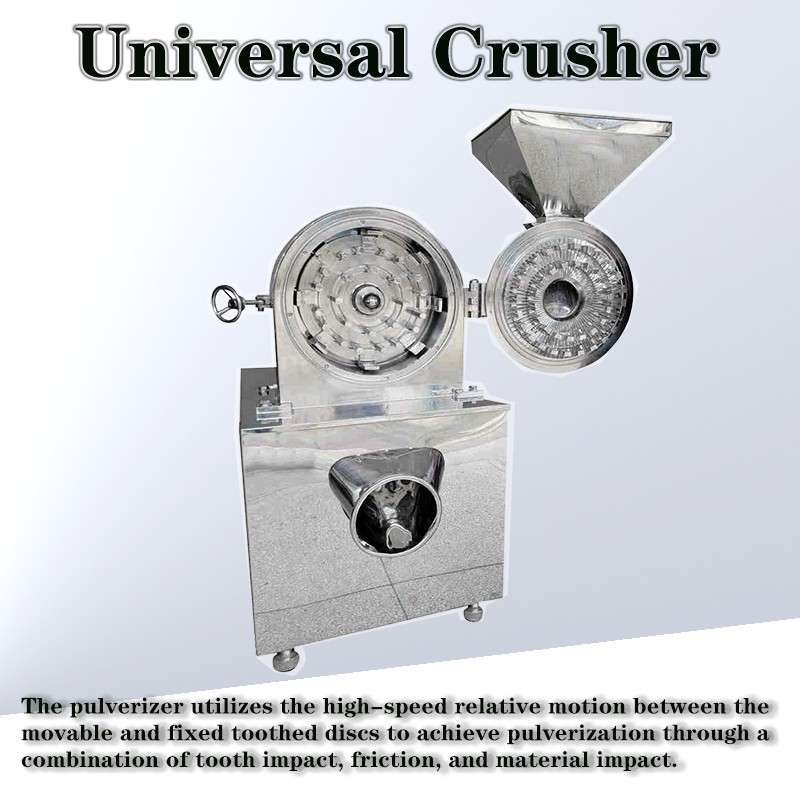

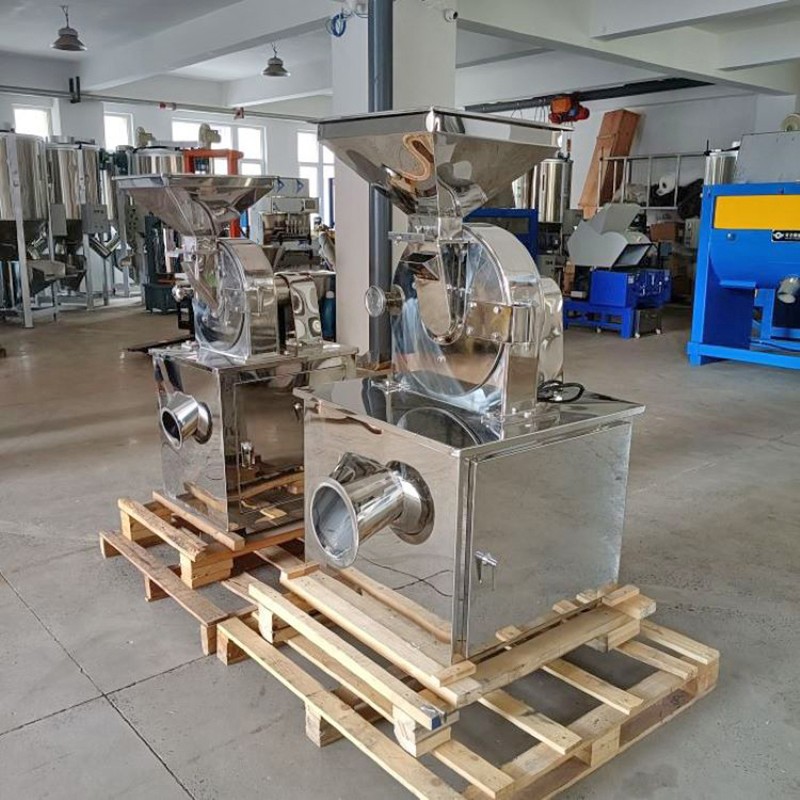

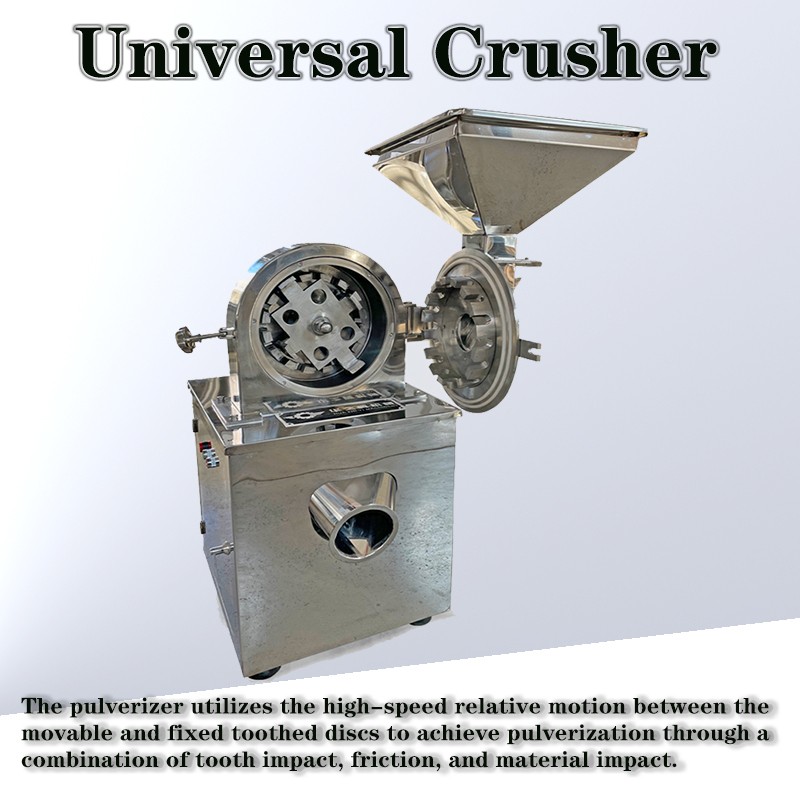

The structure of the gear disc grinder consists of a high-speed rotating moving gear disc and a fixed gear ring. The gear disc adopts a staggered tooth claw structure, and the tooth shape is divided into various specifications such as straight teeth, helical teeth, and pointed teeth. Force type: impact+shear+friction+particle self grinding composite force. Applicable materials: non sticky, low fiber materials such as roots, stems, flowers, fruits, grains, white sugar, salt, chemical powders, brittle minerals, etc. Grinding fineness: Conventional 20-120 mesh, which can be achieved by replacing the sieve mesh.
The spindle of the hammer type grinder is equipped with multiple sets of movable/fixed hammers, and the crushing chamber is equipped with impact plates. The hammer material is mostly wear-resistant alloy steel. The grinding principle is that the hammer rotates at high speed (3000-6000r/min) with the spindle, vigorously impacting, splitting, and striking the block shaped and hard materials entering the crushing chamber. With the rebound effect of the impact plate, the materials are quickly broken into small particles, and the coarse crushing effect is significant. Force type: mainly impact+splitting+striking, suitable for materials such as hard block materials, ores, feed materials, wood scraps, straw blocks, hard chemical materials, etc. Grinding fineness: mainly coarse crushing, conventional 20-60 mesh, suitable for large aperture sieves. Advantages and features: Strong crushing force, high efficiency in handling large materials, replaceable hammer blades after wear, and strong equipment durability.
