Today, let's talk about how to choose a belt conveyor
Belt conveyors include parallel belt conveyors, climbing baffle belt conveyors, skirt baffle high angle belt conveyors, anti-skid belt conveyors, movable belt conveyors, stainless steel frame conveyors, horizontal turning belt conveyors, etc.
Belt conveyors generally have a small conveying capacity and light overall weight. They are commonly used for conveying food, chemicals, packaging, powders, and small finished products. The commonly used belt width is 300-800mm, and the frame can be made of carbon steel/stainless steel.

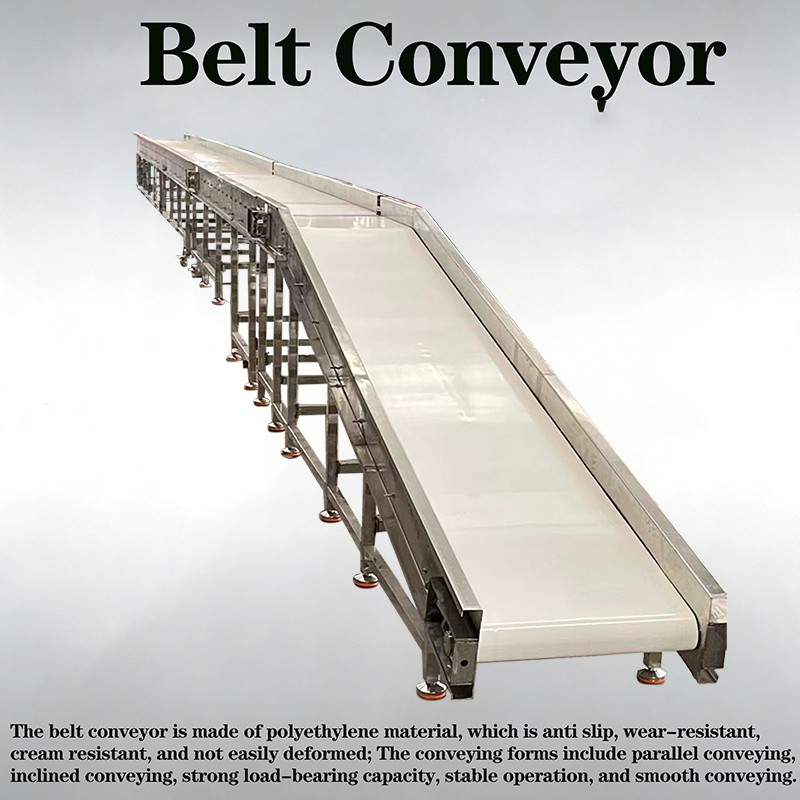

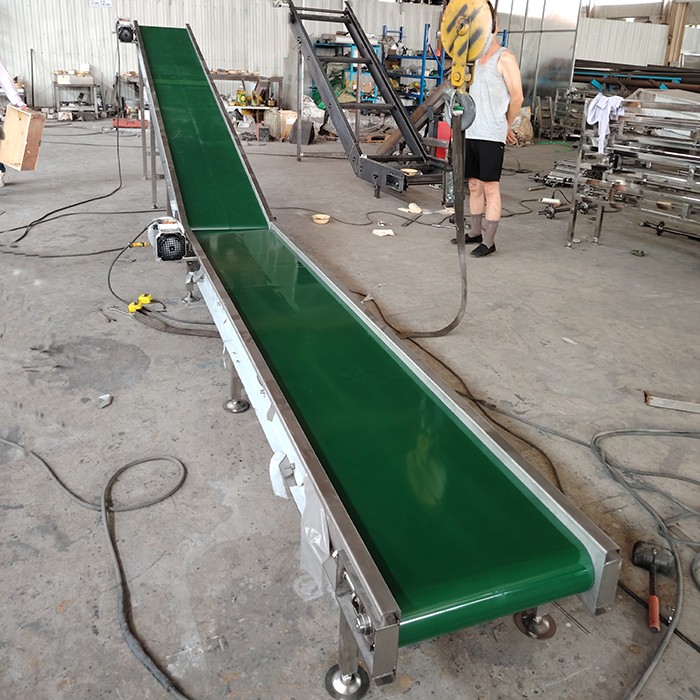

1. Flat belt conveyor: Belt material: PVC, PU, rubber. The surface of the belt is flat and smooth, and the material is conveyed flat.
-Features: Simple structure, low cost, smooth operation, capable of horizontal and small inclination conveying.
-Applicable: packaging boxes, packaging bags, granules, powders, finished workpieces.

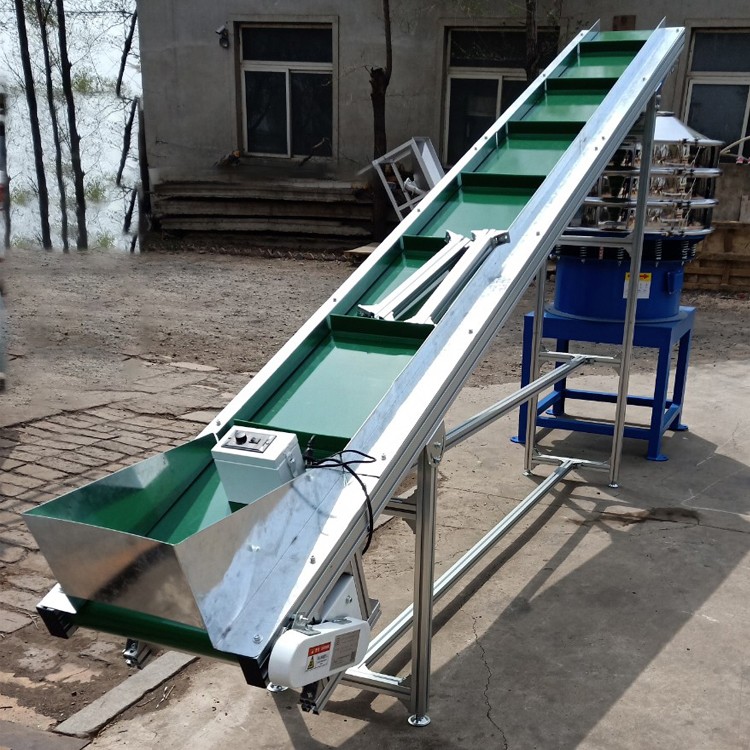

2. Climbing and lifting edge belt conveyor: The belt is equipped with a horizontal baffle (partition) to prevent material from sliding down.
-Features: It can climb and transport at a large inclination angle, with a maximum inclination angle of about 45 °.
-Applicable: lifting and feeding of granular and small materials, combined with feeding hopper.

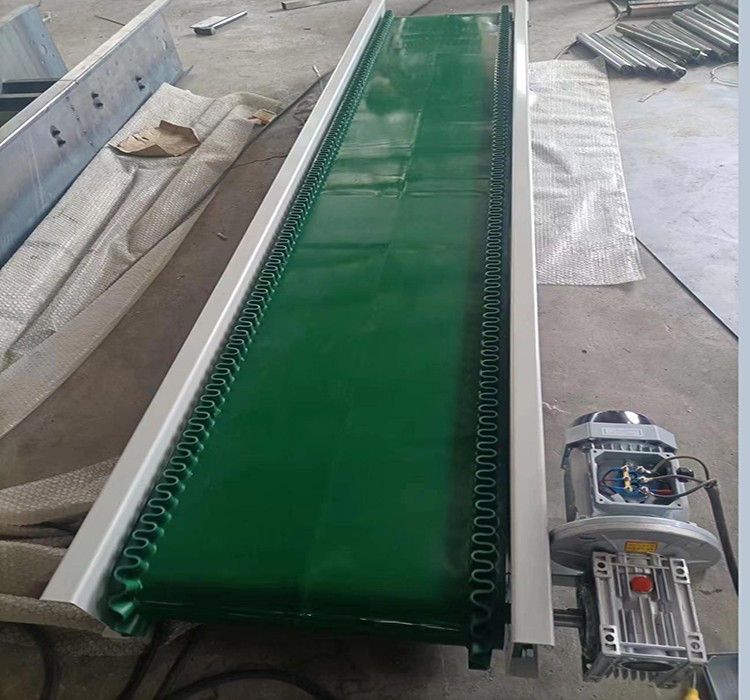

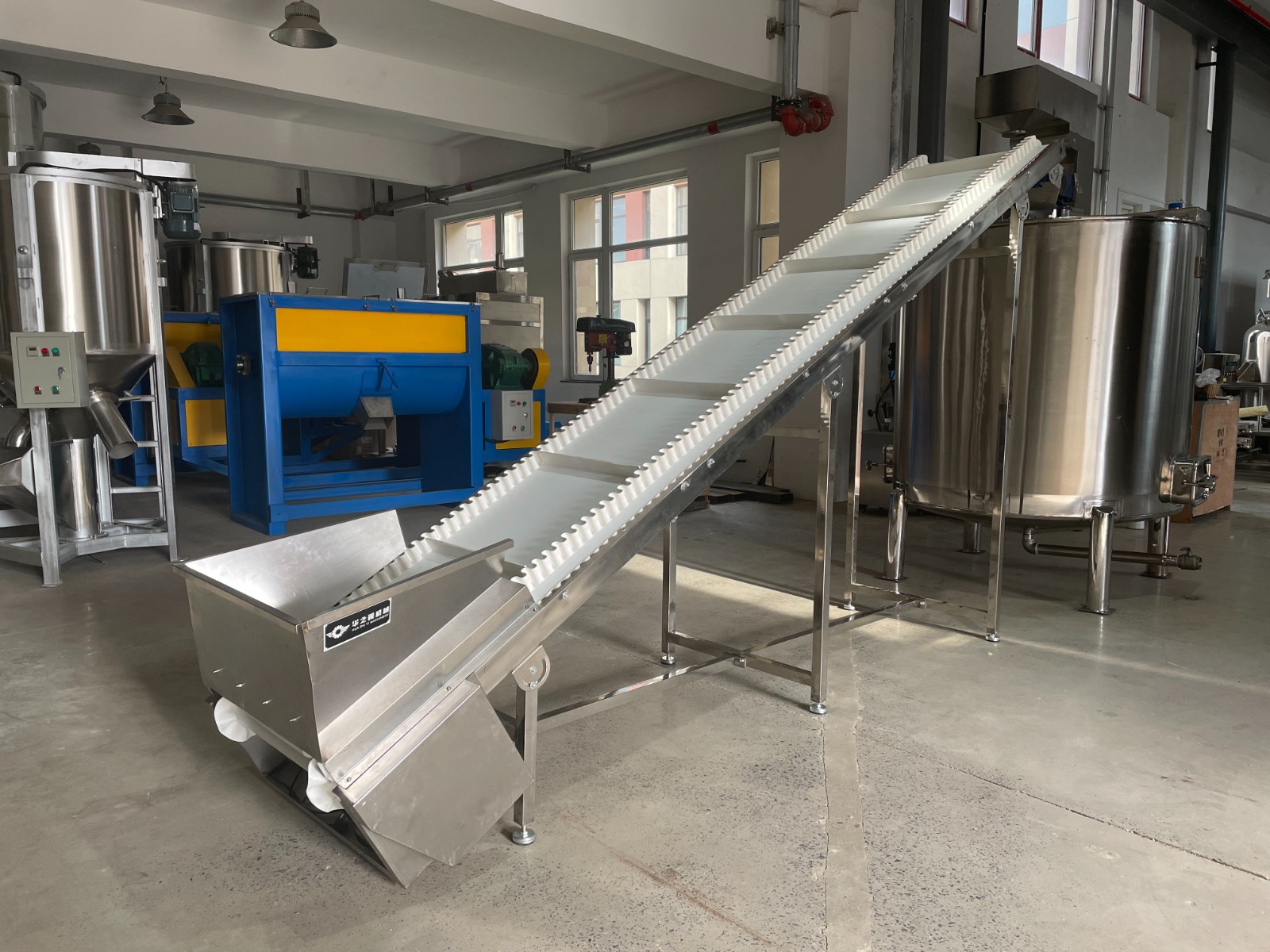

3. Belt conveyor with high inclination skirt edge: The belt is equipped with wavy skirt edges on both sides and a middle horizontal partition to prevent material leakage and sliding down.
-Features: Larger inclination angle, less prone to material scattering.
-Applicable: Water containing powder, fine particles, suitable for feeding from low to high.

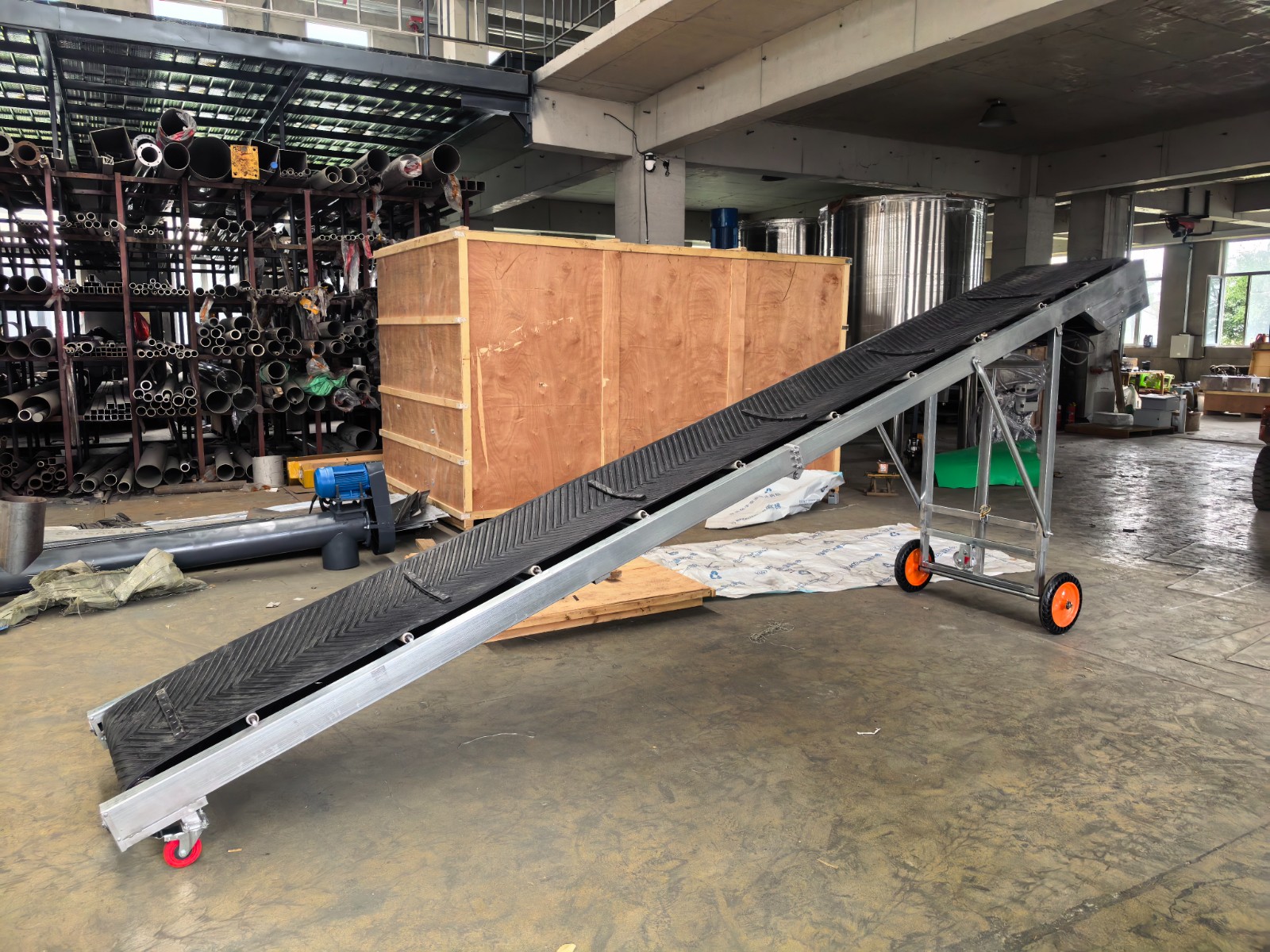

4. Anti slip patterned belt conveyor: The surface of the belt is patterned (herringbone pattern, diamond pattern) to increase friction.
-Features: Anti slip, suitable for materials with a certain inclination angle and moisture.
-Applicable: Wet particles and block materials to prevent slipping.
5. Mobile belt conveyor: with casters at the bottom, the whole machine can be pushed and moved.
-Features: Flexible, no need for fixed installation, the site can be adjusted at any time.
-Applicable: Temporary loading and unloading, warehouse loading and unloading, and rotating use of multiple workstations.
6. Stainless steel frame conveyor: The whole machine frame is made of 201/304 stainless steel, and the belt material includes PVC belt, food grade PU belt, stainless steel mesh chain, stainless steel chain plate, plastic chain plate, etc.
-Features: Easy to clean, rust proof, hygienic.
-Application: Transportation of food and daily chemical raw materials.

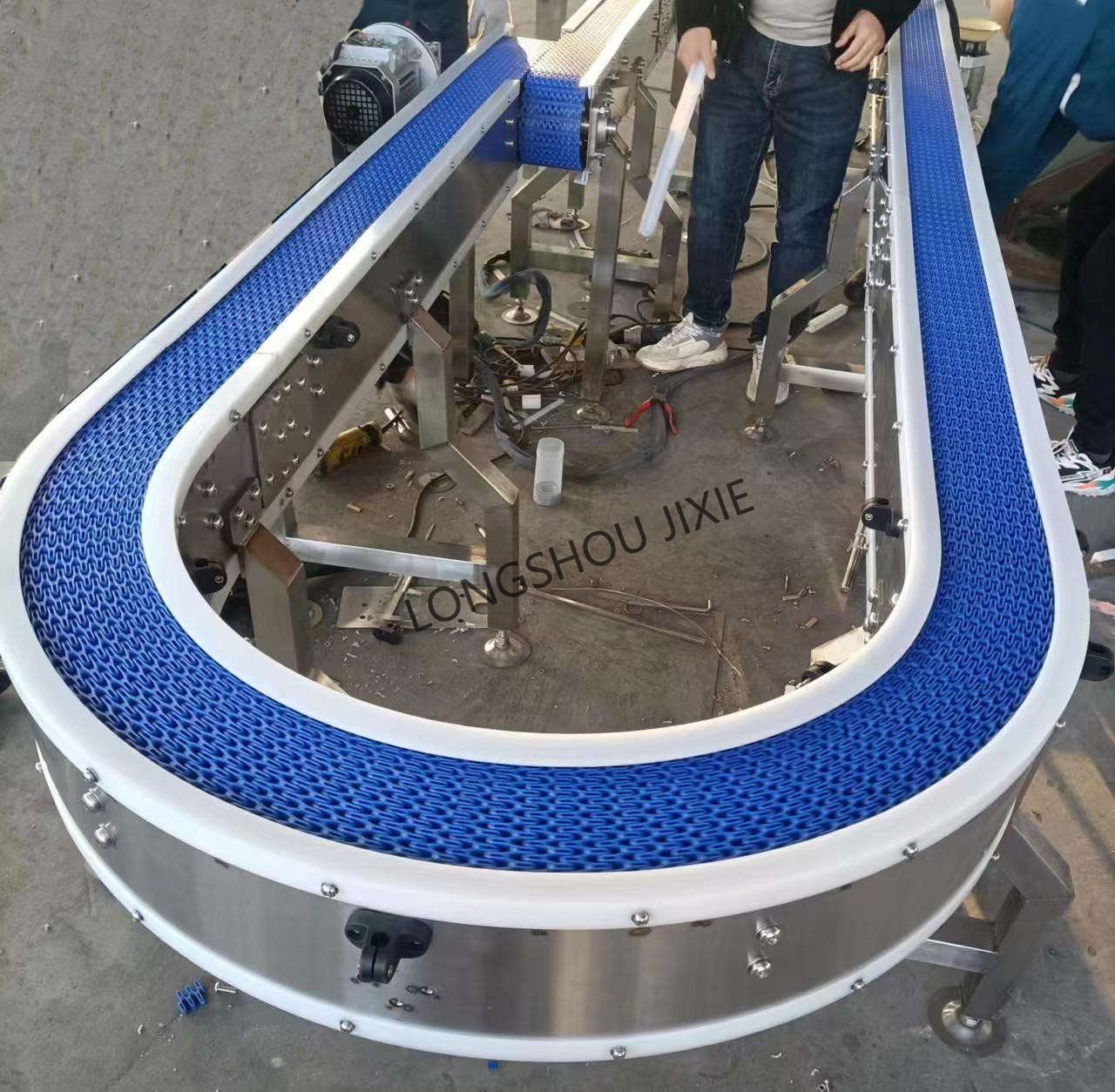

7. Horizontal turning belt conveyor: It can turn 90 °/180 ° for conveying without the need for multiple docking machines. The belt materials include plastic, stainless steel chain plates, and mesh chains.
-Features: Save space on site, transfer at corners of assembly line.
-Applicable: Packaging assembly line finished product transportation.
