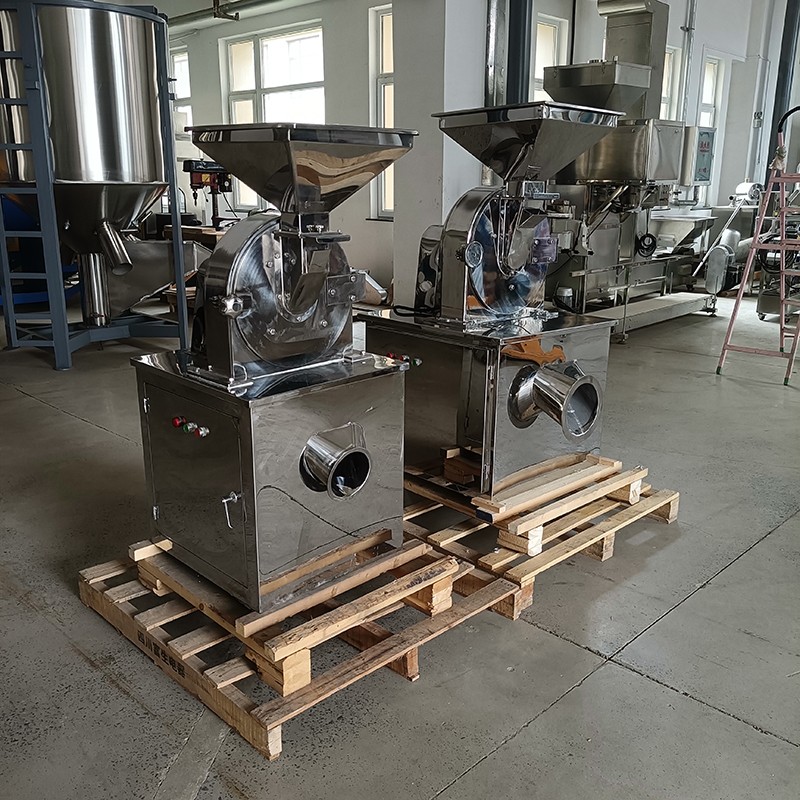

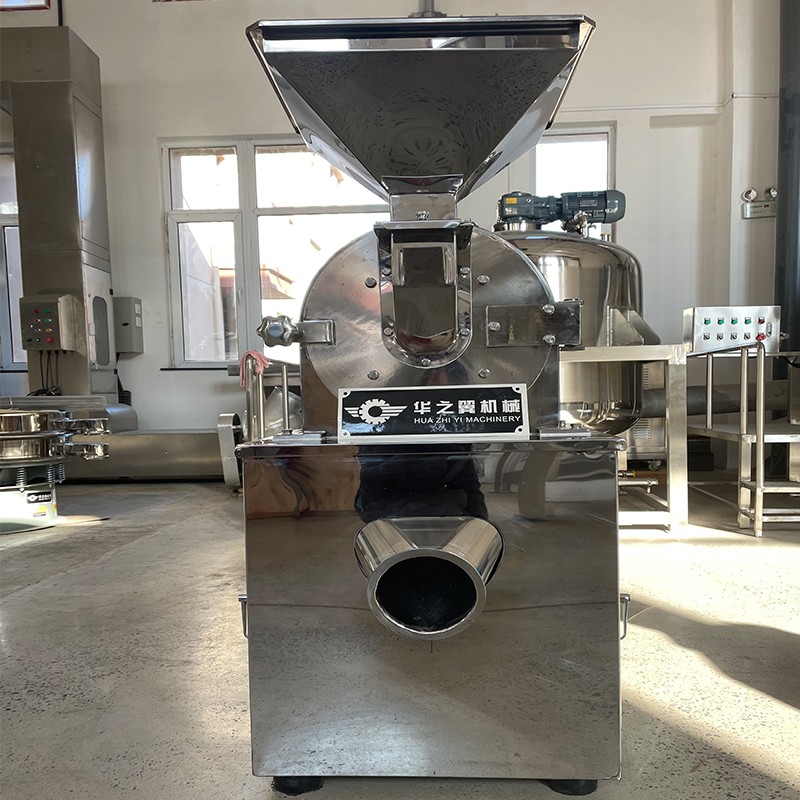

Today we will introduce the advantages of stainless steel crushers

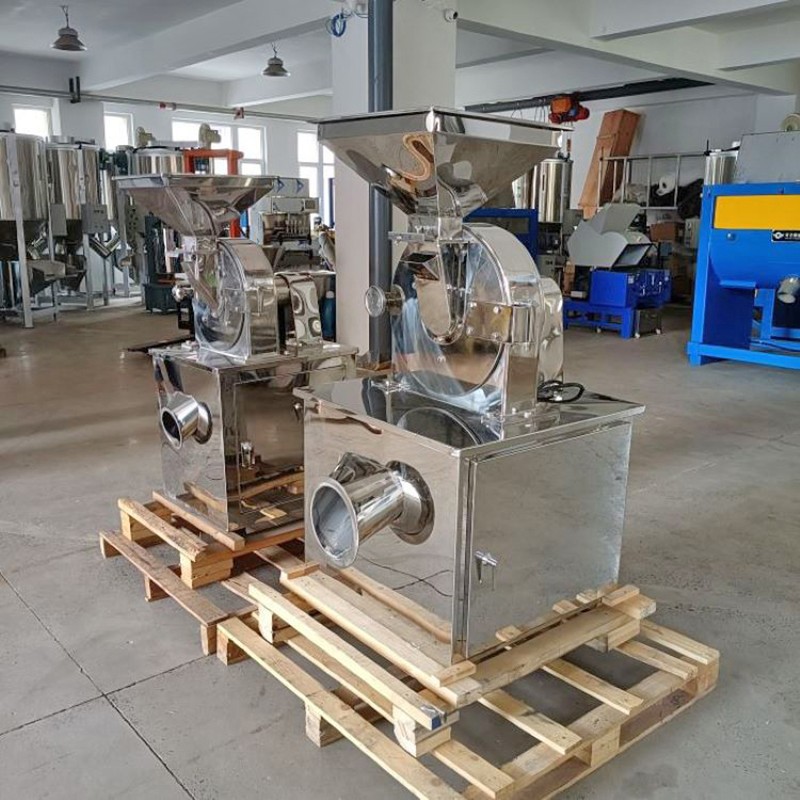

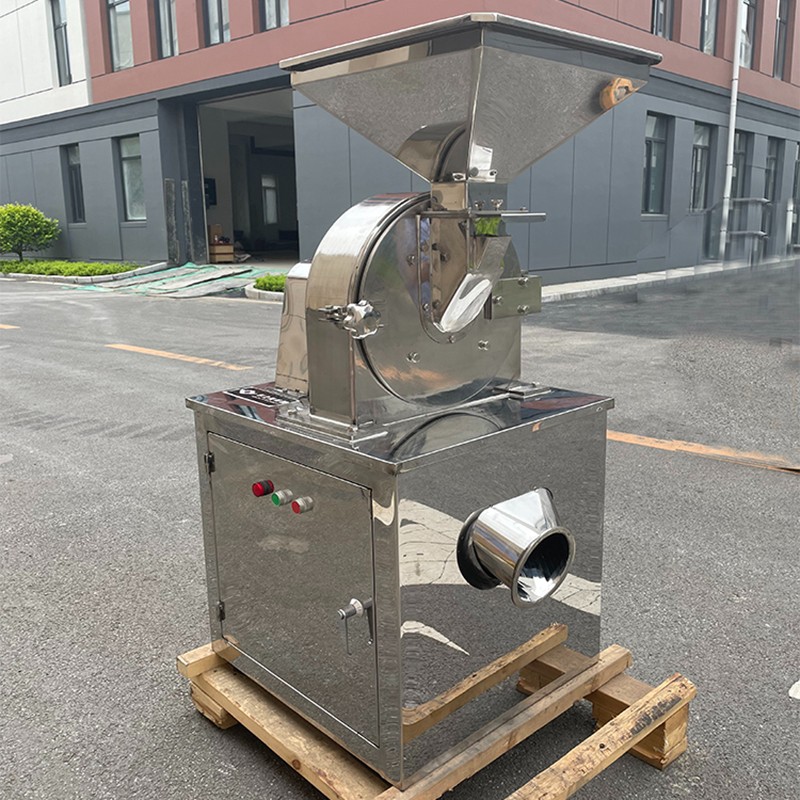

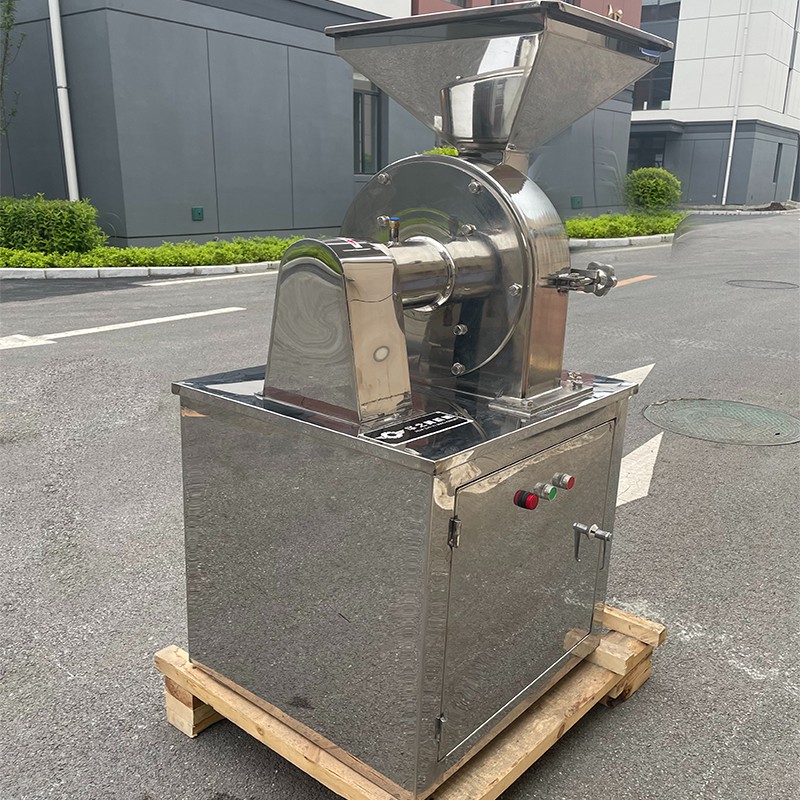

The universal crusher has a simple, sturdy structure, smooth operation, and excellent crushing effect. The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing the mesh screen with different aperture sizes. The universal crusher is suitable for various industries such as agriculture, food, and chemical industry, and is used to crush a variety of small batches of white sugar, food, ore, and chemical raw materials.
Types and respective advantages of universal crusher crushing tools
1、 Hammer type (most universal)
1. Structure: A movable steel hammer plate that rotates at high speed and impacts materials
2. Advantages: Strong impact force, fast crushing of hard and agglomerated materials; Can be used on both sides, and can be flipped over after wear and tear to double its lifespan; Easy disassembly and assembly, low replacement cost
3. Suitable for hard particles of ore and plastic.
2、 Gear disc type

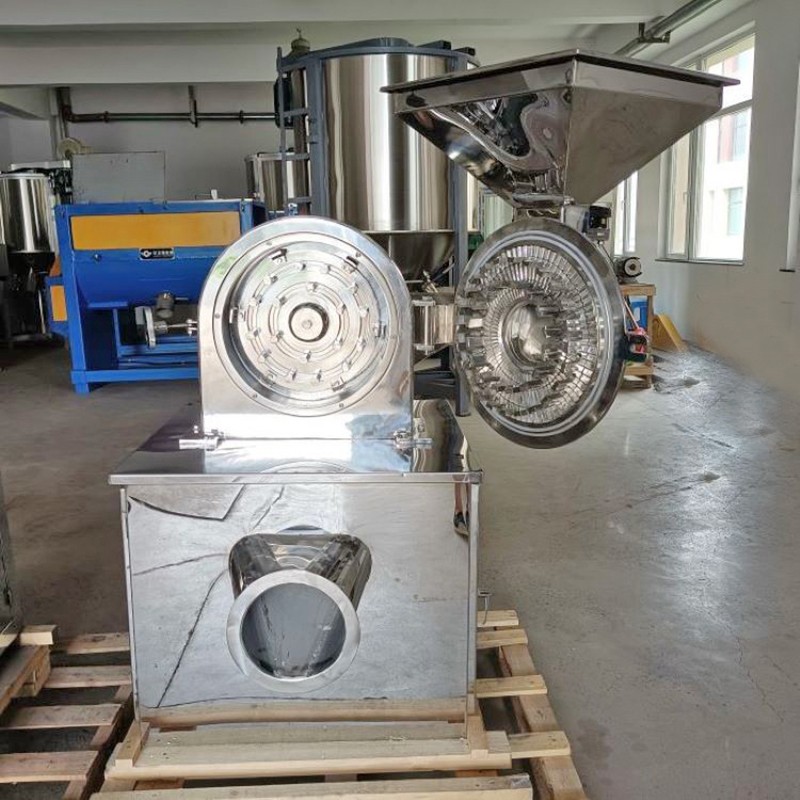

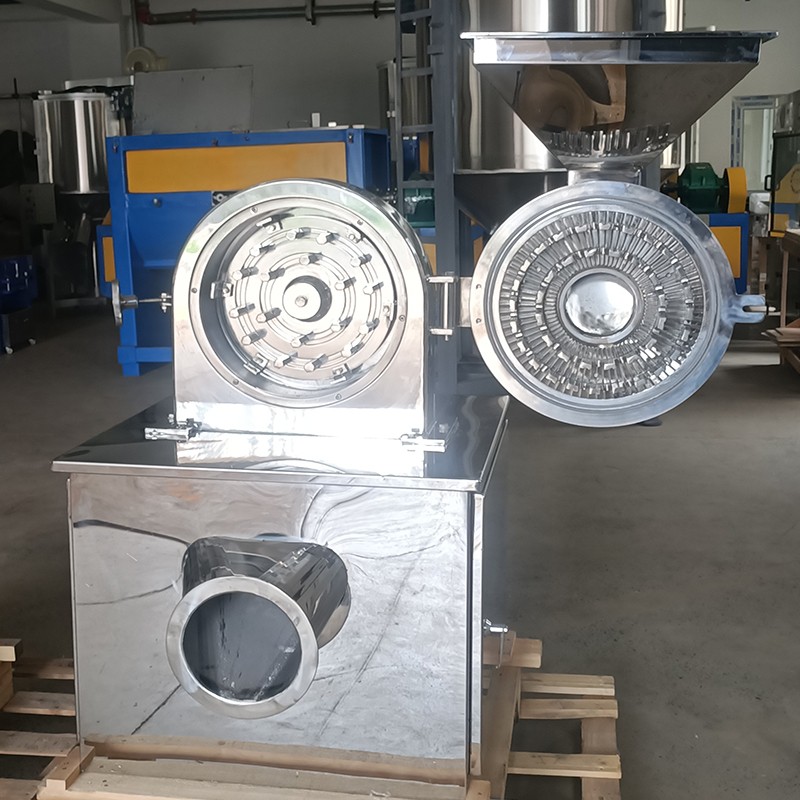

1. Structure: The moving and fixed disks are covered with staggered hard teeth and claws, and are subjected to dual crushing through impact and shear
2. Advantages: High crushing fineness, fine and uniform powder output; Tooth claws are wear-resistant and not easily deformed, suitable for fine powder grinding; Compact structure, standard for small universal machines
3. Suitable for brittle (slightly hard) materials with high mesh requirements
3、 Blade type
1. Structure: Sharp long strip alloy cutting tool, high-speed rotating shear
2. Advantages: Strong shear force, specializing in fiber materials such as bark, straw, rhizomes, etc; Quickly cut long fibers without wrapping the machine or blocking the cavity
Suitable for crushing coarse fibers and root and stem materials
4、 Turbocharged+air-cooled
1. Structure: Turbine blades+graded blade set, crushing+wind selection integrated
2. Advantages: Smooth discharge, no blockage, suitable for continuous large-scale production; The fineness is controllable,
3. Suitable for oily materials, air-cooled discharge is faster

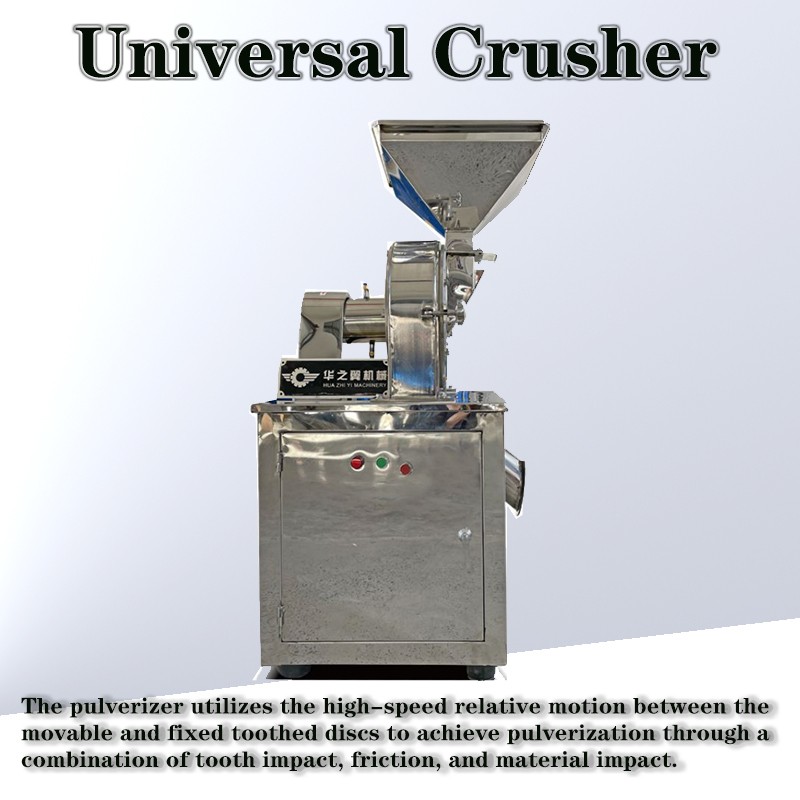

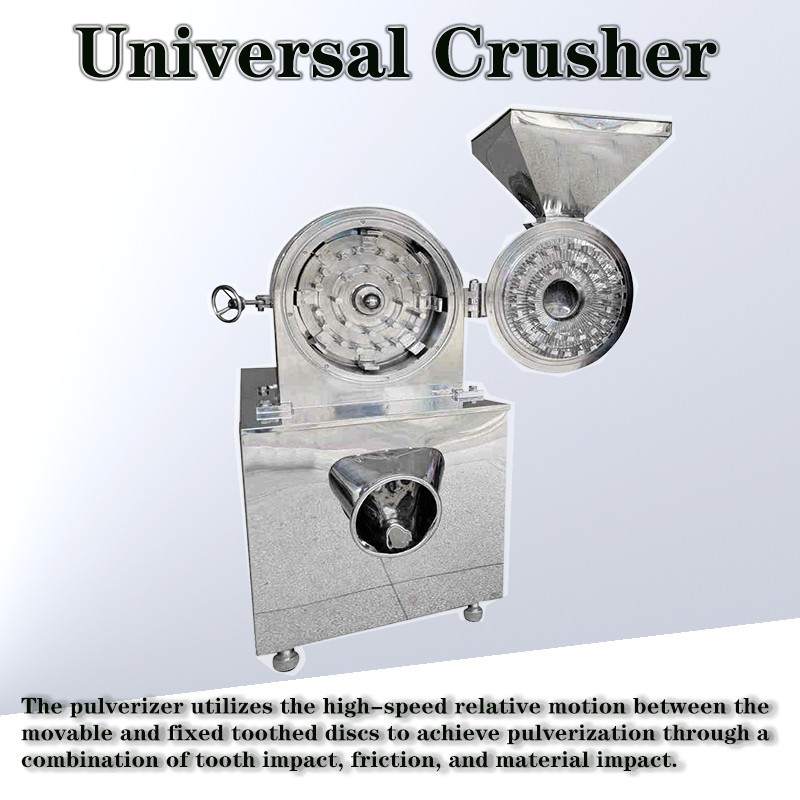

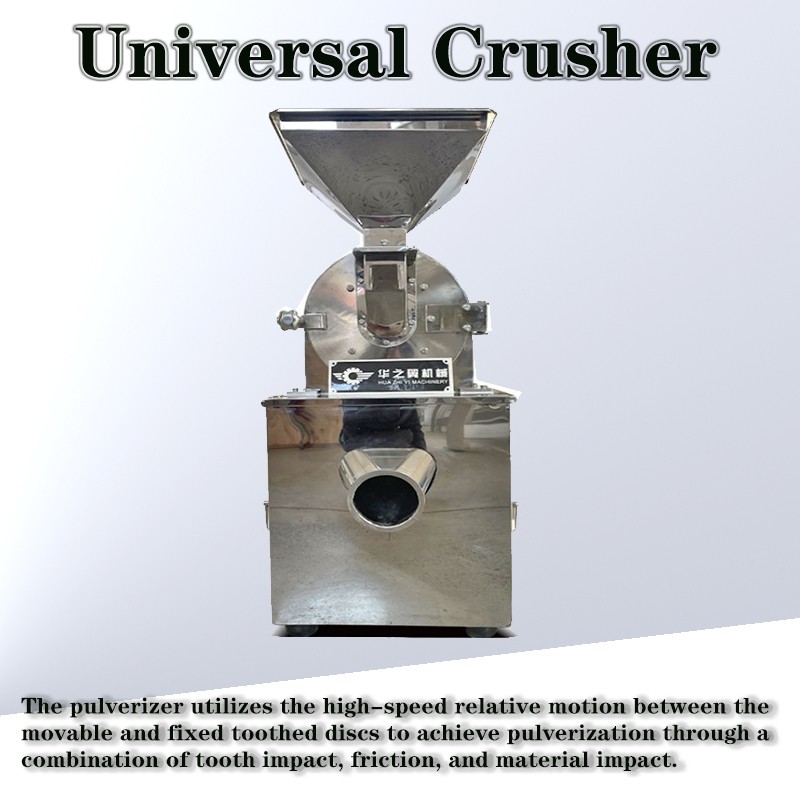

The working principle of the crusher utilizes the height between the movable toothed disc and the fixed toothed disc The relative motion of speed enables the crushed material to be crushed through a combination of gear impact, friction, and material impact with each other. The crushed material can be directly discharged from the main grinding chamber, and the particle size can be obtained by changing the sieve mesh with different aperture sizes.
