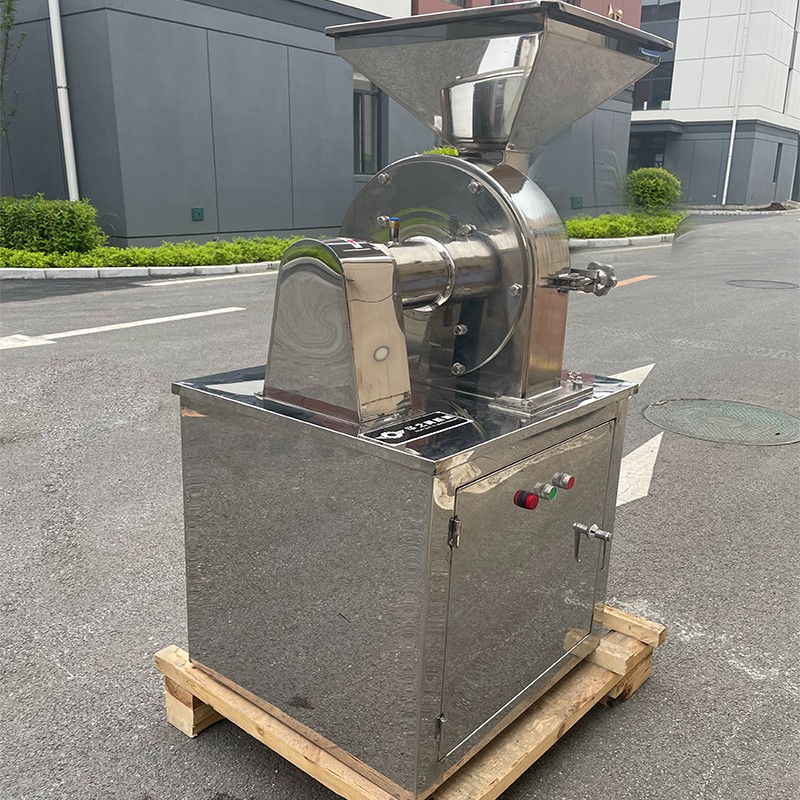

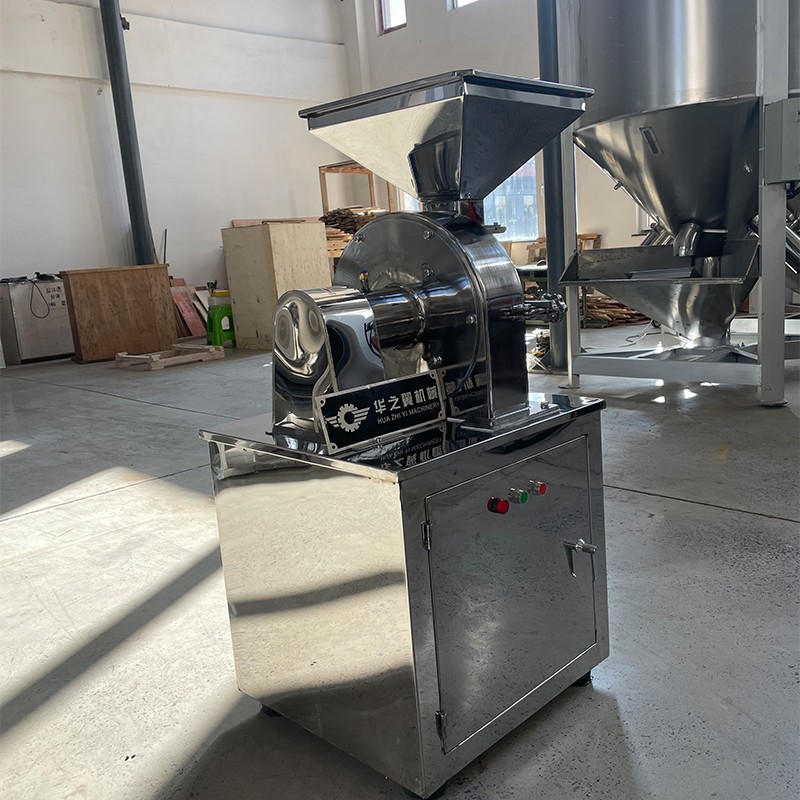

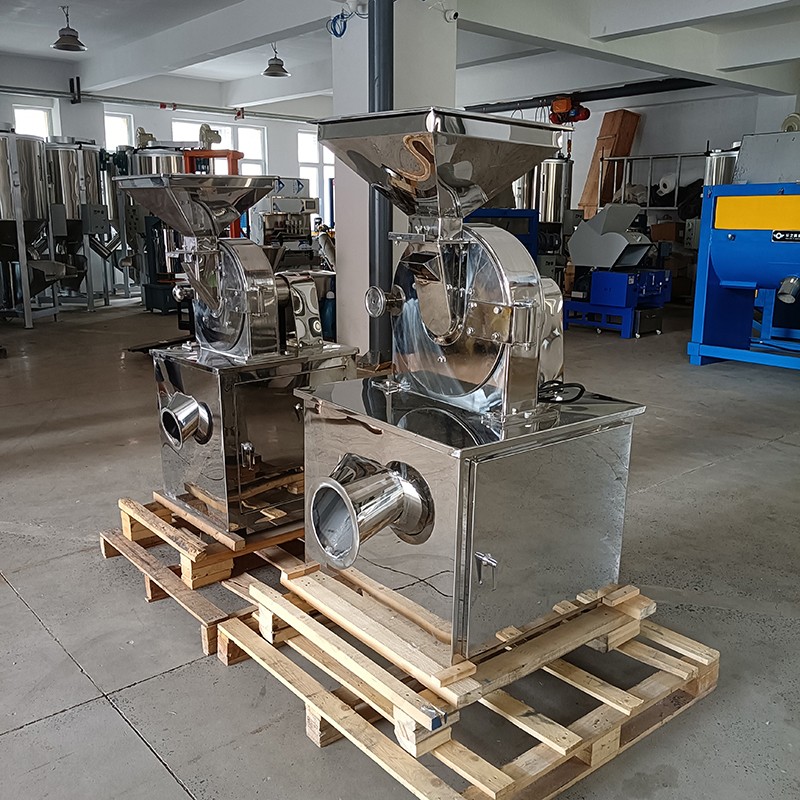

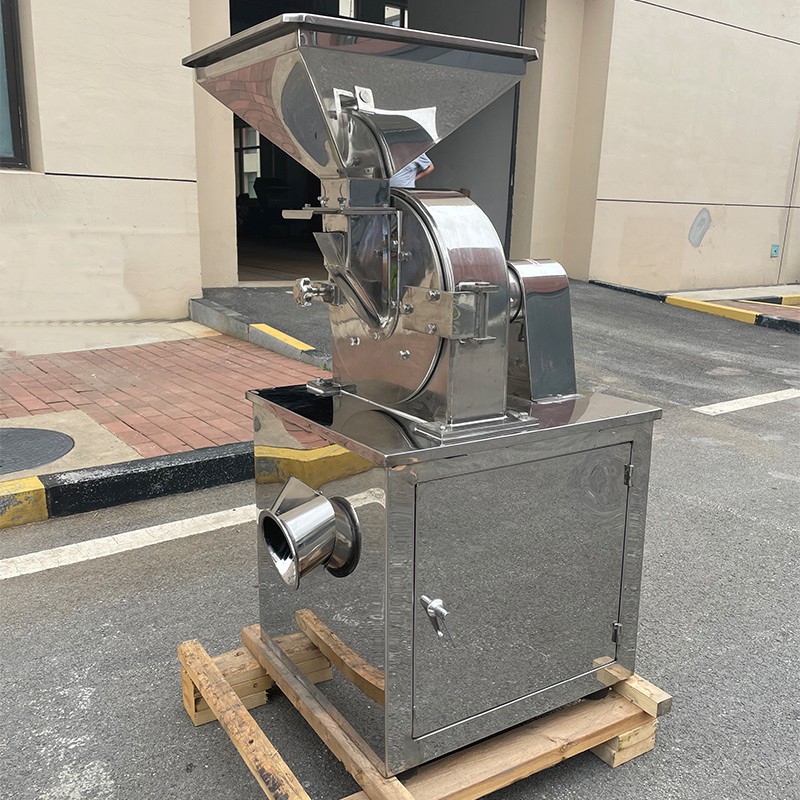

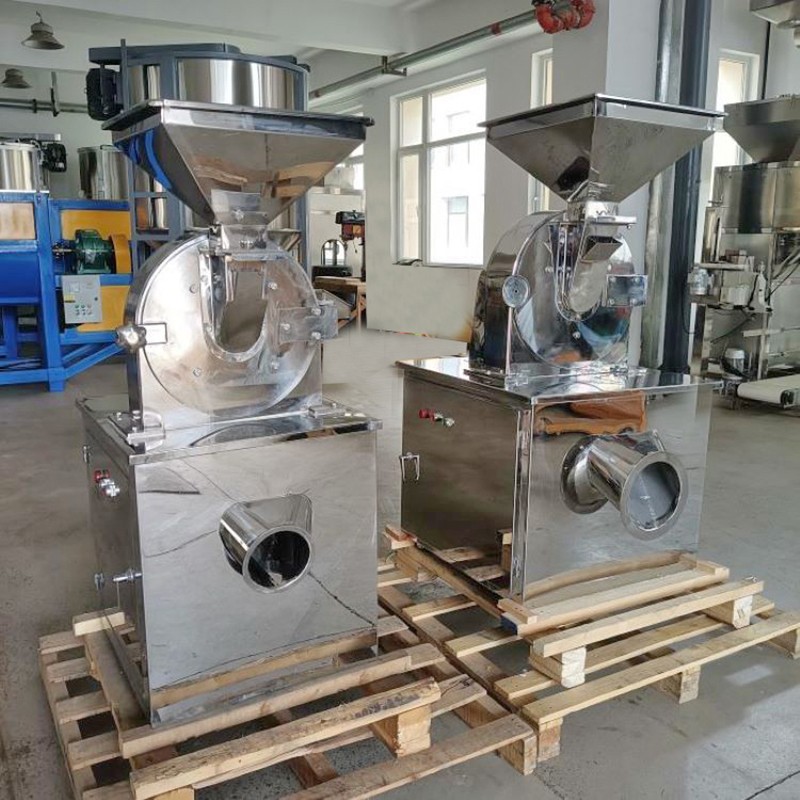

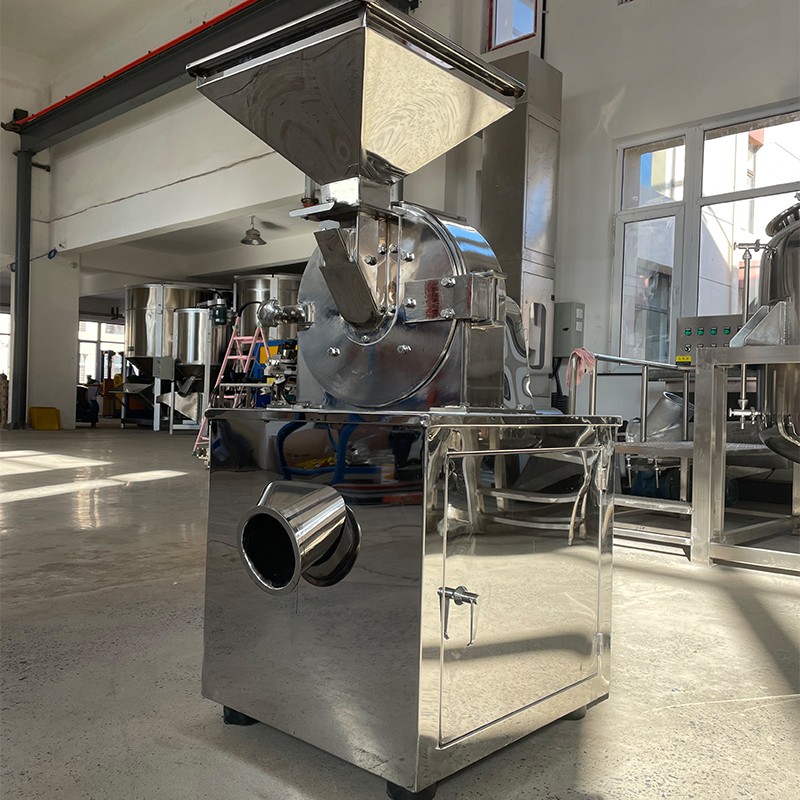

Today, we introduce a multi-purpose stainless steel crusher with one machine
The universal crusher has a simple and sturdy structure, smooth operation, and excellent crushing effect. The crushed material can be directly discharged from the main grinding chamber, and the particle size can be obtained by replacing different mesh screens with different aperture sizes. The universal crusher is suitable for various industries such as agriculture, food, and chemical industry, and is used to crush various varieties and small batches of raw materials.

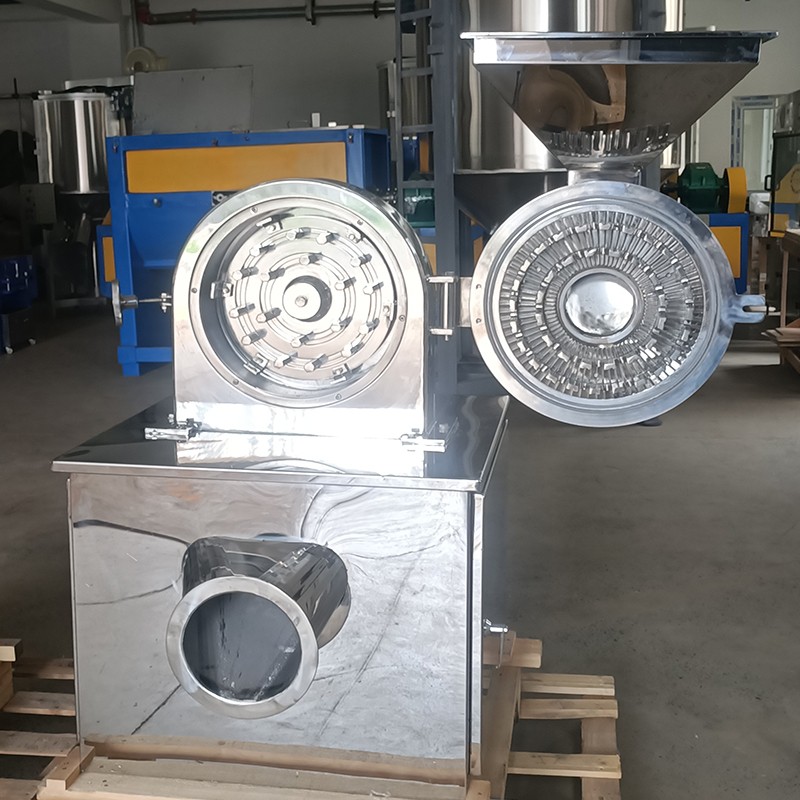

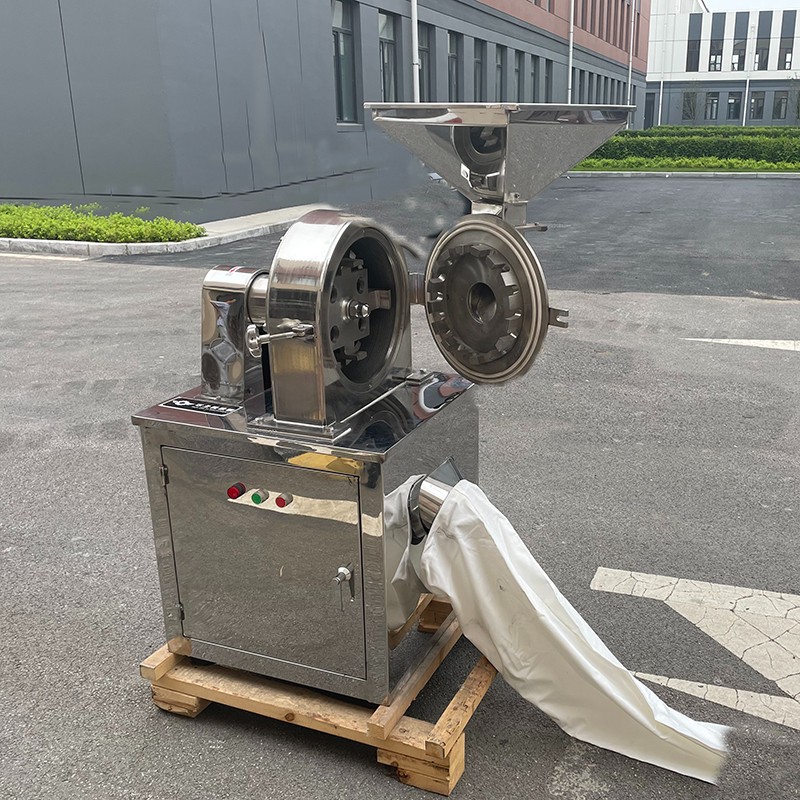

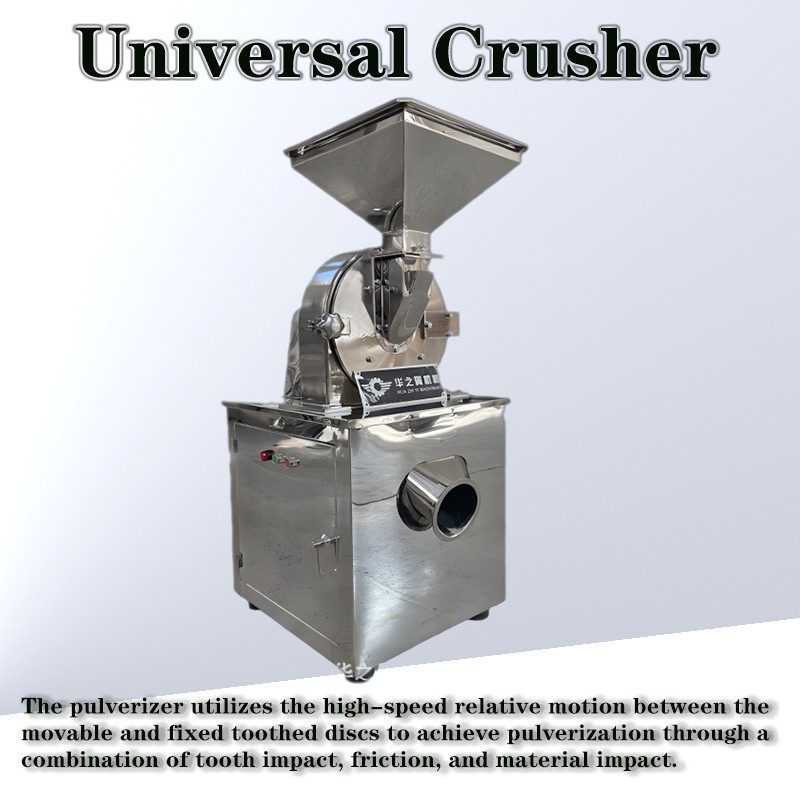

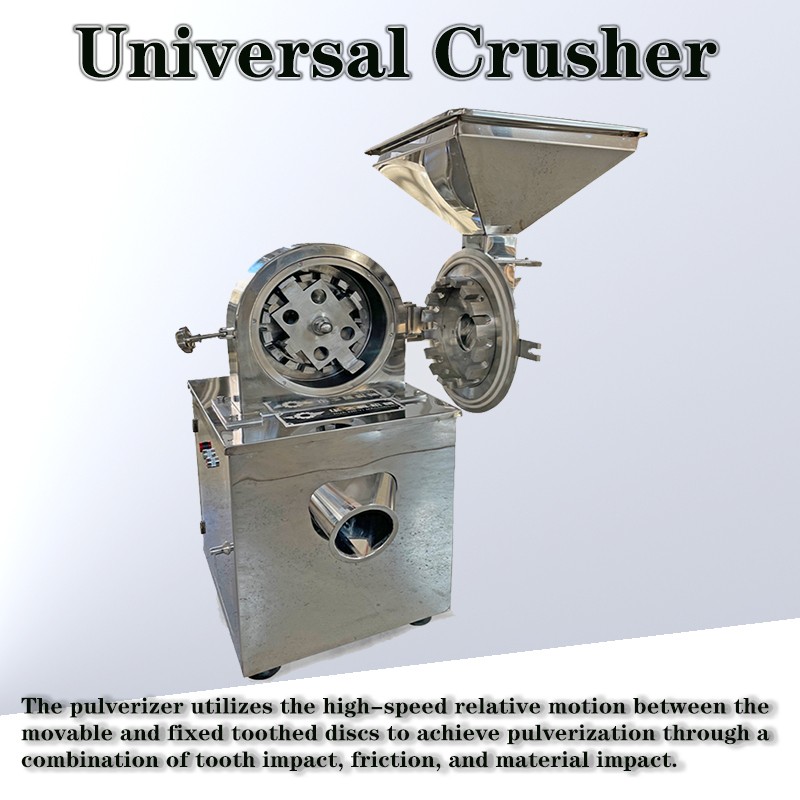

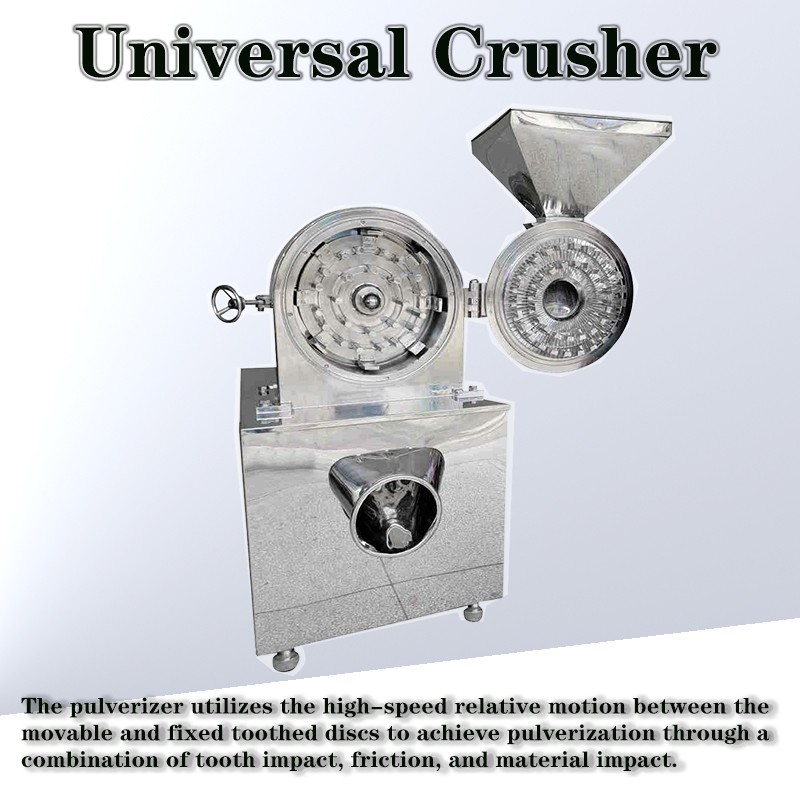

The working principle of the universal crusher: The material enters the crushing chamber from the feeding hopper through the shaking device, and is thrown towards the chamber wall by the centrifugal force generated by the high-speed rotation of the movable toothed disc from the central part. It is crushed by the impact, shear, grinding of steel teeth and the impact between materials between the movable toothed disc and the fixed toothed disc. Finally, the material reaches the annular space on the outer wall of the turntable. The fine particles are discharged from the bottom through the outer sieve plate, and the coarse powder is repeatedly crushed inside the machine.
How to choose a universal grinder grinding tool:

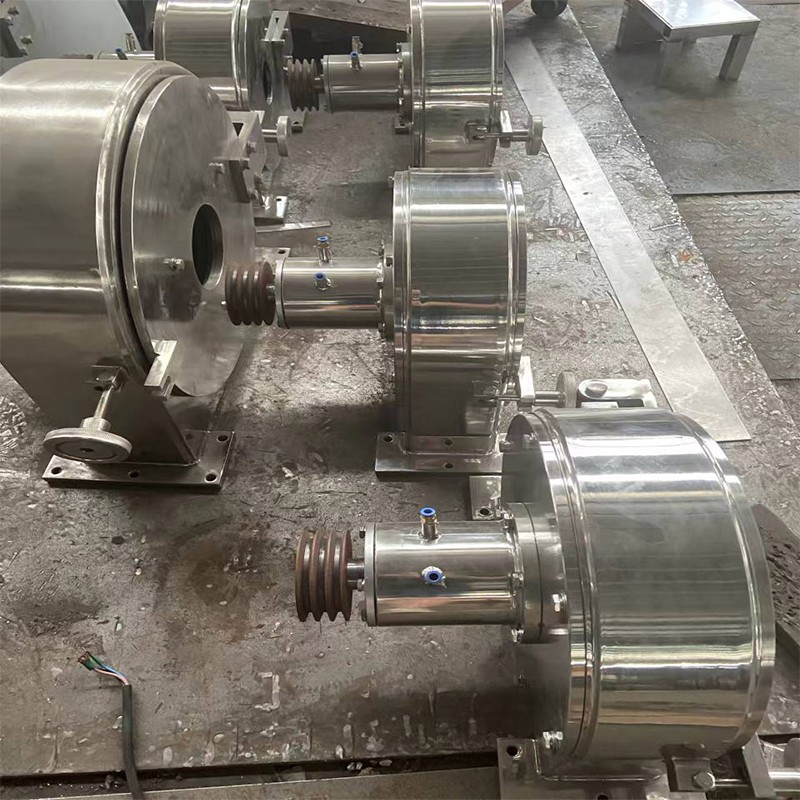

Gear disc is suitable for brittle (slightly hard) materials with high grinding fineness; Blade type suitable for root and stem materials; Air cooled and turbine type materials are suitable for materials with some oily brittleness, while hammer type materials are suitable for block materials. Among all materials, the best to crush are chemical and food materials, and the most difficult to crush are root and stem materials. The grinding fineness can be adjusted between 20-120 mesh according to one's own needs, and the adjustment of fineness can be achieved by replacing the sieve mesh.
Precautions for operation of universal crusher:
1. Before using the universal crusher, check whether all fasteners of the machine are tightened and whether the belt is tensioned.
2. The direction of spindle operation must conform to the arrow direction indicated on the protective cover, otherwise it will damage the machine and may cause personal injury.
3. Universal crushers cannot crush high-strength materials, so before use, it is necessary to check whether there are any hard impurities such as metals in the crushing chamber and the material to be crushed, otherwise it will damage the cutting tools and affect the operation of the machine.
4. If there are significant vibrations and noises during operation, it is necessary to shut down and inspect in a timely manner.
