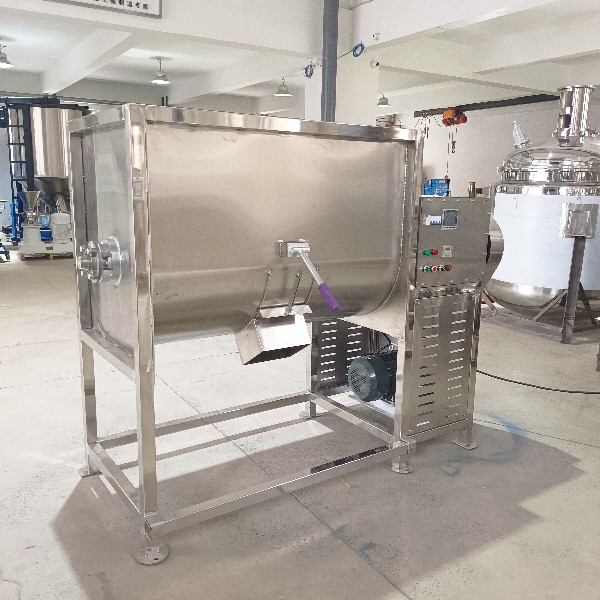

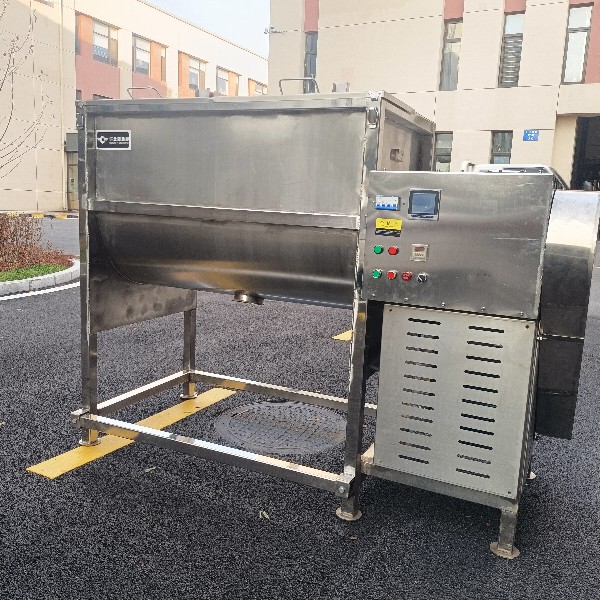

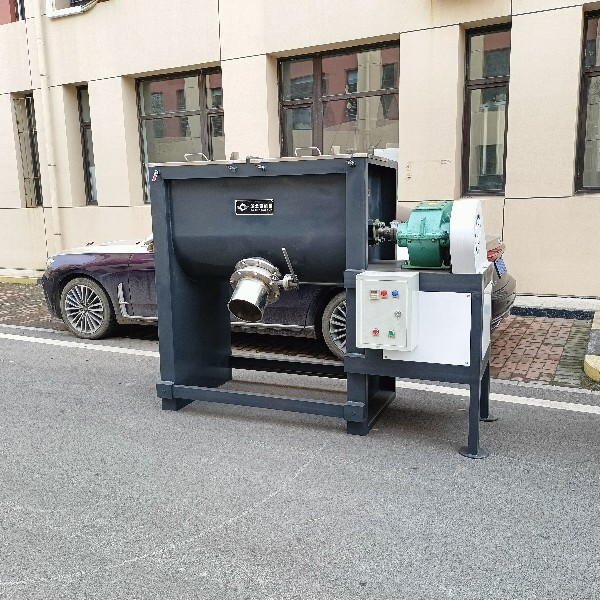

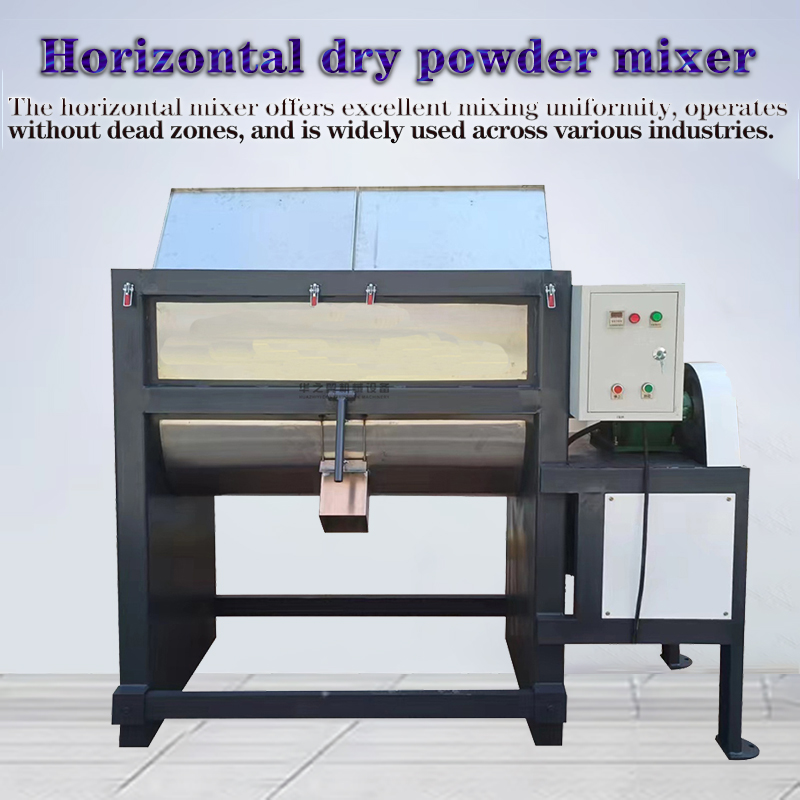

Today, let me introduce the horizontal dry powder mixer
Horizontal mixers are mainly used for mixing two or more materials, pre mixed materials, such as chemical compound fertilizers, pigments, dyes, rubber, building materials, refractory materials, rare earths, and new materials industries for solid solid (i.e. powder to powder) and solid slurry (i.e. powder to slurry) material mixing.
Fast and uniform mixing can be achieved in a short period of time. The two end shaft seals are specially sealed, and there is no leakage of powder liquid. The cost of replacing sealing consumables is low and easy to replace. Therefore, it is a widely used, adaptable, and effective high-efficiency mixing equipment.

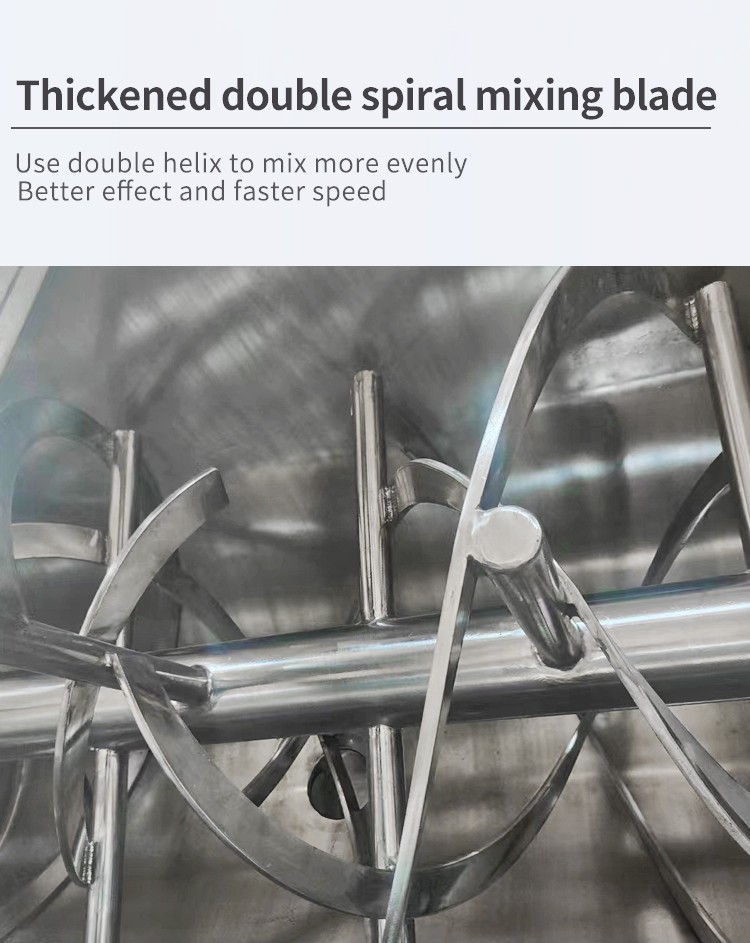

The working principle of a horizontal mixer is to arrange double-layer spiral blades on the transmission spindle, with internal and external spirals (small spiral belts) conveying materials to the outside, and external spirals (large spiral belts) pushing materials inward. Under the convective motion of the double spiral belts, the materials form a low power and high efficiency mixed environment. The inner and outer diameter screws installed on the mixing shaft drive the material inside the barrel, causing the agitator to flip the material within a certain range inside the barrel. When the mixing device is working, the inner screw drives the material near the axis to rotate axially, pushing it from the inside to both sides. The outer screw drives the material near the barrel wall to rotate axially, pushing it from both sides to the inside, allowing the mixed material to mix evenly in a short period of time.

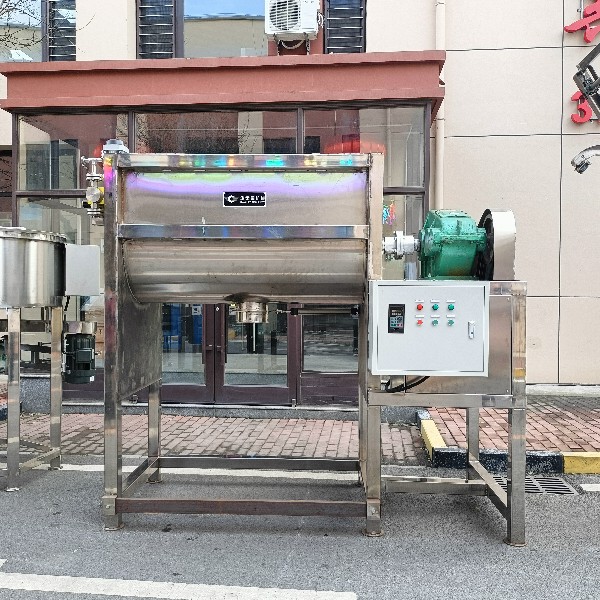

Features of stainless steel horizontal mixer:
1. The material barrel and screw belt are made of stainless steel material, which is easy to clean.

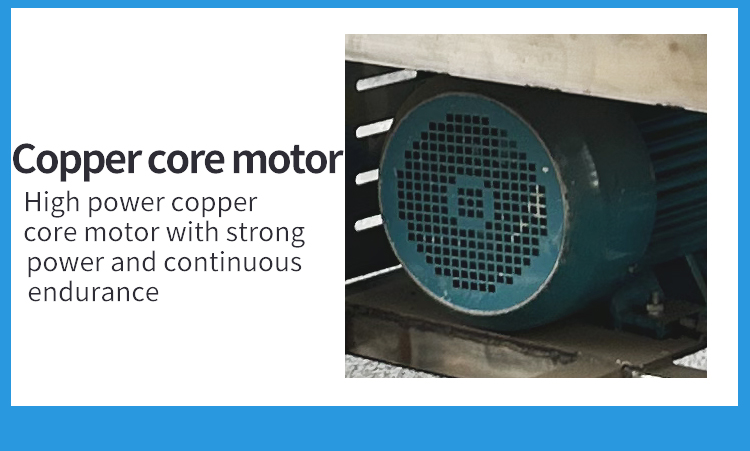

2. Adopting a reducer for deceleration, wear-resistant and durable, with long service life and low noise.
3. Use "S" type single or double screw belts to mix materials quickly, evenly, and without any storage.

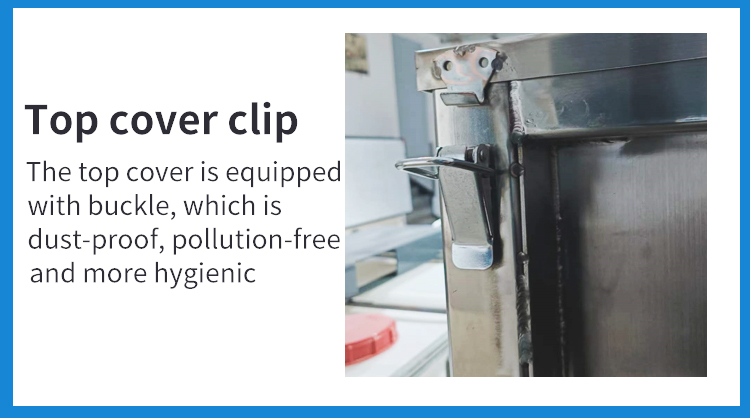

4. The top cover is opened, with a beautiful and elegant appearance, and there is no dust flying during operation, without wasting materials.

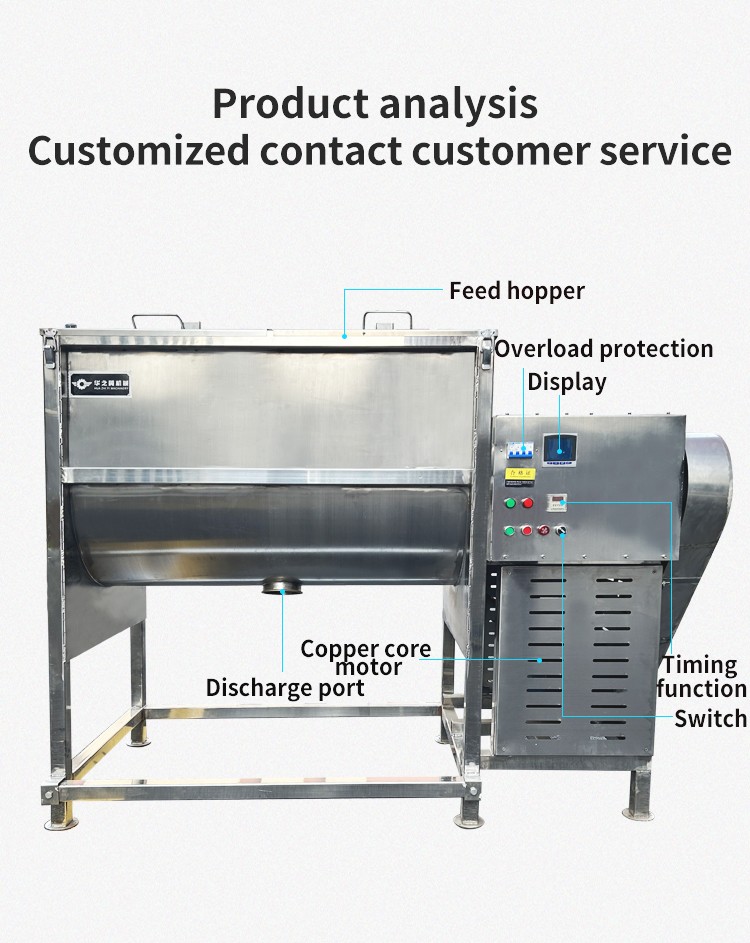

The discharge method of the horizontal mixer is:
Wall mounted (square) discharge ports are generally available for 100-1000KG. Advantages: Mixing without dead corners.
This type of discharge outlet can be selected for both circular and blade type models. Specification diameter 133-159-219-273. Disadvantage: There is a small amount of material that cannot be stirred.
